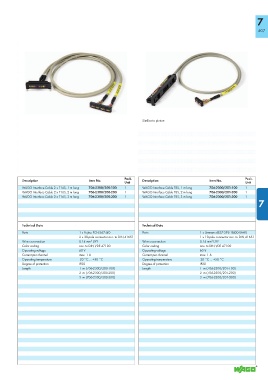

Page 409 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf
P. 409
7
407
Similiar to picture
Pack. Pack.
Description Item No. Description Item No.
Unit Unit
WAGO Interface Cable 2 x T16S, 1 m long 706-2300/200-100 1 WAGO Interface Cable T8S, 1 m long 706-2300/201-100 1
WAGO Interface Cable 2 x T16S, 2 m long 706-2300/200-200 1 WAGO Interface Cable T8S, 2 m long 706-2300/201-200 1
WAGO Interface Cable 2 x T16S, 3 m long 706-2300/200-300 1 WAGO Interface Cable T8S, 3 m long 706-2300/201-300 1
7
Technical Data Technical Data
Ports 1 x Fujitsu FCN-367-J40 Ports 1 x Siemens 6ES7-392-1BJ00-0AA0
2 x 20-pole connector acc. to DIN 41651 1 x 10-pole connector acc. to DIN 41651
2
2
Wire cross-section 0.14 mm LiYY Wire cross-section 0.14 mm LiYY
Color coding acc. to DIN VDE 47100 Color coding acc. to DIN VDE 47100
Operating voltage 60 V Operating voltage 60 V
Current per channel max. 1 A Current per channel max. 1 A
Operating temperature -20 °C … +50 °C Operating temperature -20 °C … +50 °C
Degree of protection IP20 Degree of protection IP20
Length 1 m (706-2300/200-100) Length 1 m (706-2300/201-100)
2 m (706-2300/200-200) 2 m (706-2300/201-200)
3 m (706-2300/200-300) 3 m (706-2300/201-300)
