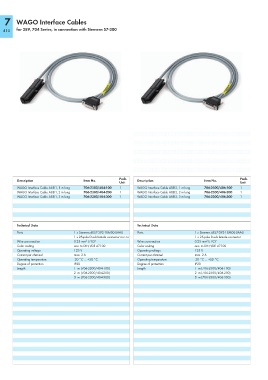

Page 412 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

7 WAGO Interface Cables

for 289, 704 Series, in connection with Siemens S7-300
410

Pack. Pack.
Description Item No. Description Item No.
Unit Unit
WAGO Interface Cable A8EI1, 1 m long 706-2300/404-100 1 WAGO Interface Cable A8EI2, 1 m long 706-2300/406-100 1
WAGO Interface Cable A8EI1, 2 m long 706-2300/404-200 1 WAGO Interface Cable A8EI2, 2 m long 706-2300/406-200 1
WAGO Interface Cable A8EI1, 3 m long 706-2300/404-300 1 WAGO Interface Cable A8EI2, 3 m long 706-2300/406-300 1

Technical Data Technical Data
Ports 1 x Siemens 6ES7-392-1BM00-0AA0 Ports 1 x Siemens 6ES7-392-1BM00-0AA0
1 x 25-pole D-sub female connector acc. to 1 x 25-pole D-sub female connector
2
2
Wire cross-section 0.25 mm Li YCY Wire cross-section 0.25 mm Li YCY
Color coding acc. to DIN VDE 47100 Color coding acc. to DIN VDE 47100
Operating voltage 125 V Operating voltage 125 V
Current per channel max. 2 A Current per channel max. 2 A
Operating temperature -20 °C … +50 °C Operating temperature -20 °C … +50 °C
Degree of protection IP20 Degree of protection IP20
Length 1 m (706-2300/404-100) Length 1 m (706-2300/406-100)
2 m (706-2300/404-200) 2 m (706-2300/406-200)
3 m (706-2300/404-300) 3 m (706-2300/406-300)
