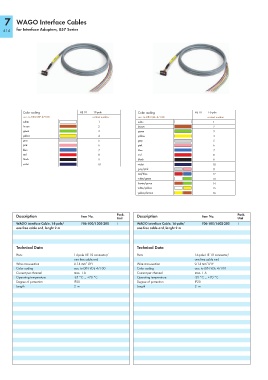

7 WAGO Interface Cables

414 for Interface Adapters, 857 Series

Color coding HE 10 10-pole Color coding HE 10 16-pole
acc. to DIN VDE 47100 contact number acc. to DIN VDE 47100 contact number
white 1 white 1
brown 2 brown 2
green 3 green 3
yellow 4 yellow 4
grey 5 grey 5
pink 6 pink 6
blue 7 blue 7
red 8 red 8
black 9 black 9
violet 10 violet 10
grey/pink 11
red/blue 12
white/green 13
brown/green 14
white/yellow 15
yellow/brown 16

Description Item No. Pack. Description Item No. Pack.
Unit Unit
WAGO Interface Cable, 14-pole/ 706-100/1303-200 1 WAGO Interface Cable, 16-pole/ 706-100/1602-200 1
one free cable end, lenght 2 m one free cable end, lenght 2 m

Technical Data Technical Data
Ports 14-pole HE 10 connector/ Ports 16-pole HE 10 connector/
one free cable end one free cable end
2
2
Wire cross-section 0.14 mm LiYY Wire cross-section 0.14 mm LiYY
Color coding acc. to DIN VDE 47100 Color coding acc. to DIN VDE 47100
Current per channel max. 1 A Current per channel max. 1 A
Operating temperature -25 °C ... +70 °C Operating temperature -25 °C ... +70 °C
Degree of protection IP20 Degree of protection IP20
Length 2 m Length 2 m
