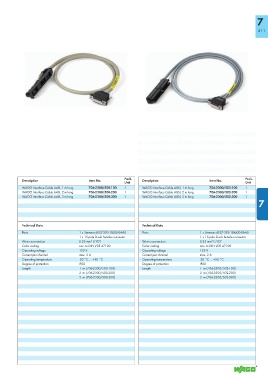

Pack. Pack.
Description Item No. Description Item No.
Unit Unit
WAGO Interface Cable A4SI, 1 m long 706-2300/500-100 1 WAGO Interface Cable A8SI, 1 m long 706-2300/502-100 1
WAGO Interface Cable A4SI, 2 m long 706-2300/500-200 1 WAGO Interface Cable A8SI, 2 m long 706-2300/502-200 1
WAGO Interface Cable A4SI, 3 m long 706-2300/500-300 1 WAGO Interface Cable A8SI, 3 m long 706-2300/502-300 1
7
Technical Data Technical Data
Ports 1 x Siemens 6ES7-392-1BJ00-0AA0 Ports 1 x Siemens 6ES7-392-1BM00-0AA0
1 x 15-pole D-sub female connector 1 x 15-pole D-sub female connector
2
2
Wire cross-section 0.25 mm Li YCY Wire cross-section 0.25 mm Li YCY
Color coding acc. to DIN VDE 47100 Color coding acc. to DIN VDE 47100
Operating voltage 125 V Operating voltage 125 V
Current per channel max. 2 A Current per channel max. 2 A
Operating temperature -20 °C … +50 °C Operating temperature -20 °C … +50 °C
Degree of protection IP20 Degree of protection IP20
Length 1 m (706-2300/500-100) Length 1 m (706-2300/502-100)
2 m (706-2300/500-200) 2 m (706-2300/502-200)
3 m (706-2300/500-300) 3 m (706-2300/502-300)
