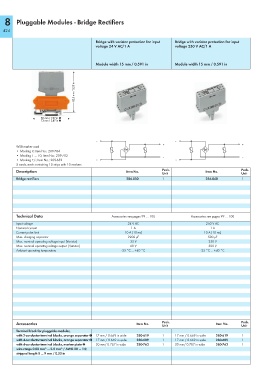

Page 426 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

8 Pluggable Modules - Bridge Rectifiers

424
Bridge with varistor protection for input Bridge with varistor protection for input
voltage 24 V AC/1 A voltage 250 V AC/1 A

Module width 15 mm / 0.591 in Module width 15 mm / 0.591 in

~ ~
+ +
WSB marker card
• Marking V; Item No.: 209-784
• Marking 1 ... 10; Item No.: 209-702
– –
• Marking +/-; Item No.: 209-652 ~ ~
5 cards, each containing 10 strips with 10 markers
Description Item No. Pack. Item No. Pack.
Unit Unit
Bridge rectifiers 286-830 1 286-840 1

Technical Data Accessories see pages 99 … 100 Accessories see pages 99 … 100

Input voltage 24 V AC 250 V AC
Nominal current 1 A 1 A
Current pulse limit 10 A (10 ms) 10 A (10 ms)
Max. charging capacitor 2200 μF 500 μF
Max. nominal operating voltage input (Varistor) 35 V 250 V
Max. nominal operating voltage output (Varistor) 60 V 300 V
Ambient operating temperature -25 °C ... +40 °C -25 °C ... +40 °C

Accessories Item No. Pack. Item No. Pack.
Unit Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 17 mm / 0.669 in wide 280-619 1 17 mm / 0.669 in wide 280-619 1
with 4-conductor terminal blocks, orange separator ➋ 17 mm / 0.669 in wide 280-609 1 17 mm / 0.669 in wide 280-609 1
with 4-conductor terminal blocks, marker plate ➋ 20 mm/ 0.787 in wide 280-763 1 20 mm/ 0.787 in wide 280-763 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
