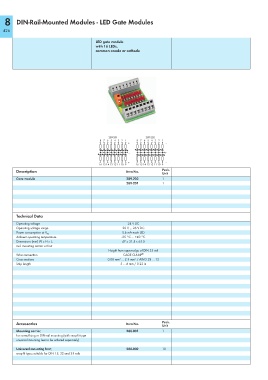

Page 428 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

8 DIN-Rail-Mounted Modules - LED Gate Modules

426
LED gate module
with 16 LEDs,
common anode or cathode

289-201 289-202
8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1
+ –
– +

+ –
16 15 14 13 12 11 10 9 16 15 14 13 12 11 10 9
Description Item No. Pack.
Unit
Gate module 289-202 1
289-201 1

Technical Data

Operating voltage 24 V DC
Operating voltage range 20 V ... 26 V DC
5.6 mA each LED
Power consumption at V N
Ambient operating temperature -25 °C ... +40 °C
Dimensions (mm) W x H x L, 47 x 31.5 x 65.5
incl. mounting carrier or feet
Height from upper-edge of DIN 35 rail
Wire connection CAGE CLAMP ®
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 12
Strip length 5 ... 6 mm / 0.22 in

Accessories Item No. Pack.
Unit
Mounting carrier, 288-001 1
for screw-fixing or DIN-rail mounting (with snap-fit type
universal mounting feet to be ordered separately)
Universal mounting foot; 288-002 10
snap-fit type; suitable for DIN 15, 32 and 35 rails
