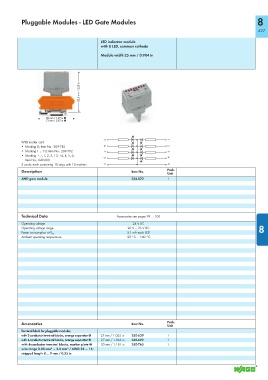

Pluggable Modules - LED Gate Modules 8
427
LED indicator module
with 8 LED, common cathode
Module width 25 mm / 0.984 in
WSB marker card
• Marking D; Item No.: 209-783
• Marking 1 ... 10; Item No.: 209-702 5 6 7 8 0 1 2 3 4 0
• Marking +, -, 1, 2, 3, 13, 14, 4, 5, 6;
Item No.: 249-608
5 cards, each containing 10 strips with 10 markers
Description Item No. Pack.
Unit
AND gate module 286-822 1
Technical Data Accessories see pages 99 … 100
Operating voltage 24 V DC 8
Operating voltage range 20 V ... 26 V DC 8
5.1 mA each LED
Power consumption at V N
Ambient operating temperature -25 °C ... +40 °C
Accessories Item No. Pack.
Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 27 mm / 1.063 in 280-639 1
with 4-conductor terminal blocks, orange separator ➋ 27 mm / 1.063 in 280-629 1
with 4-conductor terminal blocks, marker plate ➋ 30 mm / 1.181 in 280-765 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
