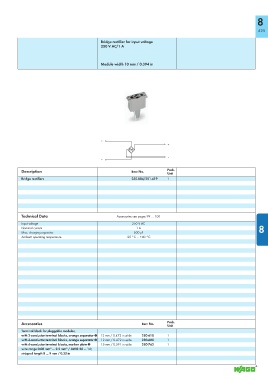

Page 427 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

8

425
Bridge rectifier for input voltage
250 V AC/1 A

Module width 10 mm / 0.394 in

~
+

–

~
Description Item No. Pack.
Unit
Bridge rectifiers 280-804/281-419 1

Technical Data Accessories see pages 99 … 100

Input voltage 250 V AC 8
Nominal current 1 A 8
Max. charging capacitor 500 μF
Ambient operating temperature -25 °C ... +40 °C

Accessories Item No. Pack.
Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 12 mm / 0.472 in wide 280-618 1
with 4-conductor terminal blocks, orange separator ➋ 12 mm / 0.472 in wide 280-608 1
with 4-conductor terminal blocks, marker plate ➋ 15 mm / 0.591 in wide 280-762 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
