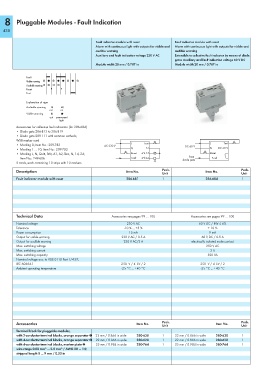

8 Pluggable Modules - Fault Indication

438
Fault indicator module with reset Fault indicator module with reset
Alarm with continuous light with outputs for visible and Alarm with continuous light with outputs for visible and
audible warning audible warning
Auxiliary and fault indication voltage 230 V AC Extensible to collective fault indicator by means of diode
gates Auxiliary and fault indication voltage 60 V DC
Module width 20 mm / 0.787 in Module width 20 mm / 0.787 in

Fault
Visible warning
Audiable warning
Reset
Test

Explanation of signs
Audiable warning
out on
Visible warning
out permanent
light
Accessories for collective fault indication (for 286-684)
• Diode gate 286-813 to 286-819
• Diode gate 289-111 with common cathode,
WSB marker card
• Marking D; Item No.: 209-783 L Test L Test
AC 230 V
DC 60 V
• Marking 1 ... 10; Item No.: 209-702 N N N DC 60 V
• Marking L, N, Quitt, Stör, A1, A2, Test, N, 14, 24; Reset 14 Reset
Item No.: 249-606 Fault 24 from Fault
diode gate
5 cards, each containing 10 strips with 10 markers
Description Item No. Pack. Item No. Pack.
Unit Unit
Fault indicator module with reset 286-681 1 286-684 1

Technical Data Accessories see pages 99 … 100 Accessories see pages 99 … 100

Nominal voltage 230 V AC 60 V DC / RW ≤ 6%
Tolerance -10 % ... +5 % ± 10 %
Power consumption 15 mA 9 mA
Output for visible warning 230 V AC / 0.5 A 60 V DC / 0.5 A
Output for audible warning 230 V AC/2 A electrically isolated make contact
Max. switching voltage 250 V AC
Max. switching current 2 A
Max. switching capacity 500 VA
Nominal voltage acc. to VDE 0110 Part 1/4.97,
IEC 60664-1 250 V / 4 kV / 2 250 V / 4 kV / 2
Ambient operating temperature -25 °C ... +40 °C -25 °C ... +40 °C

Accessories Item No. Pack. Item No. Pack.
Unit Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 22 mm / 0.866 in wide 280-638 1 22 mm / 0.866 in wide 280-638 1
with 4-conductor terminal blocks, orange separator ➋ 22 mm / 0.866 in wide 280-628 1 22 mm / 0.866 in wide 280-628 1
with 4-conductor terminal blocks, marker plate ➋ 25 mm / 0.984 in wide 280-764 1 25 mm / 0.984 in wide 280-764 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
