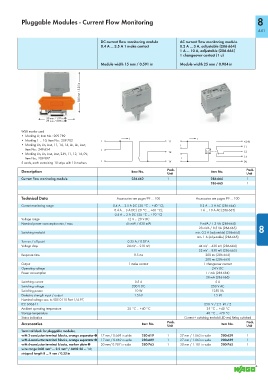

Page 443 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

Pluggable Modules - Current Flow Monitoring 8

441
DC current flow monitoring module AC current flow monitoring module
0.4 A ... 3.5 A 1 make contact 0.2 A ... 3 A, adjustable (286-664)
1 A ... 10 A, adjustable (286-665)
1 changeover contact (1 u)
Module width 15 mm / 0.591 in Module width 25 mm / 0.984 in

WSB marker card
• Marking U; Item No.: 209-789
I I
• Marking 1 ... 10; Item No.: 209-702 I 11 +24V
• Marking Lin, Lin, Lout, 11, 14, 14, Lin, Lin, Lout; I
11
Item No.: 249-654 I
14 I 12
• Marking Lin, Lin, Lout, Lout, 24V, 11, 12, 14, 0V; U
14
Item No.: 209-997 I
I 14
5 cards, each containing 10 strips with 10 markers 0V
Description Item No. Pack. Item No. Pack.
Unit Unit
Current flow monitoring module 286-662 1 286-664 1
286-665 1
Technical Data Accessories see pages 99 … 100 Accessories see pages 99 … 100

Current monitoring range 0.4 A ... 3.5 A DC (-20 °C ... +40 °C); 0.2 A ... 3 A AC (286-664)
0.4 A ... 3 A DC (-20 °C ... +60 °C); 1 A ... 10 A AC (286-665)
0.4 A ... 2 A DC (-20 °C ... +70 °C)
Voltage range 12 V ... 28 V DC
Nominal power consumption min / max 45 mW / 630 mW 9 mVA / 1.3 VA (286-664) 8
23 mVA / 8.5 VA (286-665) 8
Switching treshold min. 0.2 A (adjustable) (286-664)
min. 1 A (adjustable) (286-665)
Turn on / off point 0.35 A / 0.07 A
Voltage drop 24 mV ... 210 mV 44 mV ... 430 mV (286-664)
23 mV ... 850 mV (286-665)
Response time 0.5 ms 300 ms (286-664)
200 ms (286-665)
Output 1 make contact 1 changeover contact
Operating voltage 24 V DC
Power consumption 17 mA (286-664)
28 mA (286-665)
Switching current 0.5 A 5 A
Switching voltage 200 V DC 250 V AC
Switching power 10 W 1250 VA
Dielectric strength input / output 1.5 kV 1.5 kV
Nominal voltage acc. to VDE 0110 Part 1/4.97,
IEC 60664-1 250 V / 2.5 kV / 2
Ambient operating temperature -25 °C ... +40 °C -25 °C ... +40 °C
Storage temperature -40 °C ... +70 °C
Status indication Current < switching treshold LED red, Relay switched
Accessories Item No. Pack. Item No. Pack.
Unit Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 17 mm / 0.669 in wide 280-619 1 27 mm / 1.063 in wide 280-639 1
with 4-conductor terminal blocks, orange separator ➋ 17 mm / 0.669 in wide 280-609 1 27 mm / 1.063 in wide 280-629 1
with 4-conductor terminal blocks, marker plate ➋ 20 mm/ 0.787 in wide 280-763 1 30 mm / 1.181 in wide 280-765 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
