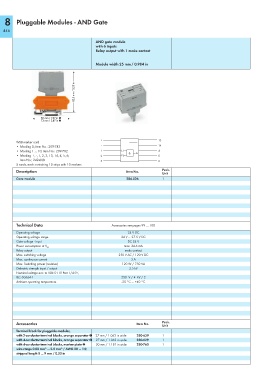

Page 448 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

8 Pluggable Modules - AND Gate

446
AND gate module
with 6 inputs
Relay output with 1 make contact

Module width 25 mm / 0.984 in

+ 13
WSB marker card
• Marking D; Item No.: 209-783 – 14
• Marking 1 ... 10; Item No.: 209-702 1 E1 4
& A
• Marking +, -, 1, 2, 3, 13, 14, 4, 5, 6; 2 E6 5
Item No.: 249-608 3 6
5 cards, each containing 10 strips with 10 markers
Description Item No. Pack.
Unit
Gate module 286-826 1

Technical Data Accessories see pages 99 … 100
Operating voltage 24 V DC
Operating voltage range 24 V ... 27.5 V DC
Gate voltage - input DC 24 V
max. 34.6 mA
Power consumption at V N
Relay output make contact
Max. switching voltage 250 V AC / 120 V DC
Max. continuous current 3 A
Max. Switching power (resistive) 120 W / 750 VA
Dielectric strength input / output 2.5 kV
Nominal voltage acc. to VDE 0110 Part 1/4.97,
IEC 60664-1 250 V / 4 kV / 2
Ambient operating temperature -25 °C ... +40 °C

Accessories Item No. Pack.
Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 27 mm / 1.063 in wide 280-639 1
with 4-conductor terminal blocks, orange separator ➋ 27 mm / 1.063 in wide 280-629 1
with 4-conductor terminal blocks, marker plate ➋ 30 mm / 1.181 in wide 280-765 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
