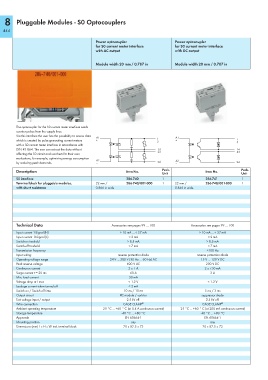

8 Pluggable Modules - S0 Optocouplers

444
Power optocoupler Power optocoupler
for S0 current meter interface for S0 current meter interface
with AC output with DC output

Module width 20 mm / 0.787 in Module width 20 mm / 0.787 in

The optocoupler for the S0 current meter interface sends
counter pulses from the supply lines.
Via this interface the user has the possibility to access data
A1 A1
which is created by pulse generating current meters + 1 + 1
3 3
with a S0 current meter interface in accordance with
DIN 43 864. The user can extract the data without 14 14
23 23
affecting the S0 circuit and use them for their own
evaluations, for example, optimizing energy consumption
A2 A2
by reducing peak demands. – 24 – 24
Description Item No. Pack. Item No. Pack.
Unit Unit
S0 interface 286-740 1 286-741 1
Terminal block for pluggable modules, 22 mm / 286-740/001-000 1 22 mm / 286-740/001-000 1
with shunt resistance 0.866 in wide 0.866 in wide

Technical Data Accessories see pages 99 … 100 Accessories see pages 99 … 100
Input current 1-Signal (H) > 10 mA ... < 27 mA > 10 mA ... < 27 mA
Input current 0-Signal (L) < 2 mA < 2 mA
Switch-on treshold > 8.5 mA > 8.5 mA
Switch-off treshold < 7 mA < 7 mA
Transmission frequency <100 Hz
Input wiring reverse protection diode reverse protection diode
Operating voltage range 24 V ... 280 V (50 Hz ... 60 Hz) AC 15 V ... 120 V DC
Peak reverse voltage 600 V AC 200 V DC
Continuous current 2 x 1 A 2 x 750 mA
Surge current t = 20 ms 60 A 3 A
Min. load current 30 mA
Voltage drop at I max < 1.2 V < 1.2 V
Leakage current when turned off < 2 mA
Switch on / Switch off time 10 ms / 10 ms 5 ms / 3 ms
Output circuit RC module / varistor suppressor diode
Test voltage input / output 2.5 kV eff. 2.5 kV eff.
Wire connection CAGE CLAMP ® CAGE CLAMP ®
Ambient operating temperature -25 °C ... +60 ° C (at 0.4 A continuous current) -25 °C ... +60 ° C (at 200 mA continuous current)
Storage temperature -40 °C ... +80 °C -40 °C ... +80 °C
Approvals EN 60664-1 EN 60664-1
Mounting position any any
Dimensions (mm) L x H x W incl. terminal block 20 x 82.5 x 73 20 x 82.5 x 73
