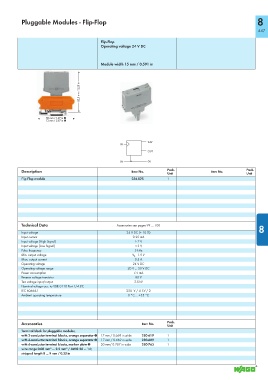

Page 449 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf
P. 449
Pluggable Modules - Flip-Flop 8
447
Flip-Flop
Operating voltage 24 V DC
Module width 15 mm / 0.591 in
24V
IN
OUT
0V 0V
Description Item No. Pack. Item No. Pack.
Unit Unit
Flip Flop module 286-825 1
8
Technical Data Accessories see pages 99 … 100 8
Input voltage 24 V DC (± 10 %)
Input current 0.25 mA
Input voltage (High Signal) > 7 V
Input voltage (Low Signal) < 3 V
Pulse frequency 5 kHz
Min. output voltage V B - 1.5 V
Max. output current 0.5 A
Operating voltage 24 V DC
Operating voltage range 20 V ... 30 V DC
Power consumption 7.5 mA
Reverse voltage transistor 80 V
Test voltage input/output 2.5 kV
Nominal voltage acc. to VDE 0110 Part 1/4.97,
IEC 60664-1 250 V / 4 kV / 2
Ambient operating temperature 0 °C ... +55 °C
Accessories Item No. Pack.
Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 17 mm / 0.669 in wide 280-619 1
with 4-conductor terminal blocks, orange separator ➋ 17 mm / 0.669 in wide 280-609 1
with 4-conductor terminal blocks, marker plate ➋ 20 mm/ 0.787 in wide 280-763 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
