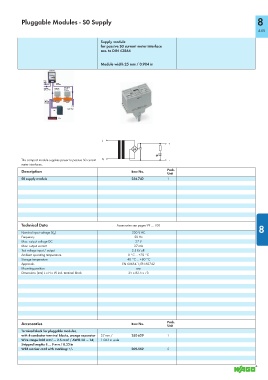

Page 447 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

Pluggable Modules - S0 Supply 8

445
Supply module
for passive S0 current meter interface
acc. to DIN 43864

Module width 25 mm / 0.984 in

Current meter
Power
supply
Passive
S0 interface
Power supply
Supply line Module for
for passiv
(pulse counted) S0 interface
S0 interface
2 electri-
cally isola-
ted outputs
L1 N
Supply voltage
PLC
Display
L
+

This compact module supplies power to passive S0 current N –
meter interfaces.
Description Item No. Pack.
Unit
S0 supply module 286-742 1

8
Technical Data Accessories see pages 99 … 100 8
Nominal input voltage (V N ) 230 V AC
Frequency 50 Hz
Max. output voltage DC 27 V
Max. output current 27 mA
Test voltage input / output 2.5 kV eff.
Ambient operating temperature 0 °C ... +70 °C
Storage temperature -40 °C ... +80 °C
Approvals EN 60664-1; EN 60742
Mounting position any
Dimensions (mm) L x H x W incl. terminal block 25 x 82.5 x 73

Accessories Item No. Pack.
Unit
Terminal block for pluggable modules,
with 4-conductor terminal blocks, orange separator 27 mm / 280-629 1
Wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14; 1.063 in wide
Stripped lengths 8 ... 9 mm / 0.33 in
WSB marker card with marking: +/- 209-552 5
