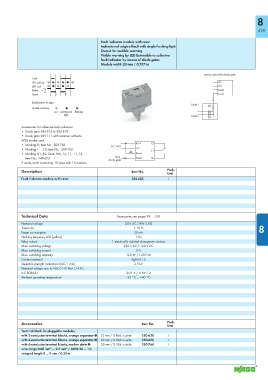

Fault indicator module with reset
Indication of original fault with single flashing light
Output for audible warning
Visible warning by LED Extensible to collective
fault indicator by means of diode gates
Module width 20 mm / 0.787 in

can be used with diode gate
Fault
A1
LED yellow
A2
LED red
12
Reset
Relay 11
14
Fault
Reset
Explanation of signs
Fault 1

Visible warning
out permanent flashing
light
Fault n
Accessories for collective fault indication
• Diode gate 286-813 to 286-819
• Diode gate 289-111 with common cathode
WSB marker card
• Marking D; Item No.: 209-783 A1+ 12
DC 24 V
• Marking 1 ... 10; Item No.: 209-702 A2-
11
• Marking A1, A2, Quitt, Stör, 12, 11, 11, 14; Reset
Item No.: 249-653 from Fault 14
diode gate
5 cards, each containing 10 strips with 10 markers
Description Item No. Pack.
Unit
Fault indicator module with reset 286-683 1

Technical Data Accessories see pages 99 … 100

Nominal voltage 24 V DC / RW ≤ 6% 8
Tolerance ± 10 % 8
Power consumption 25 mA
Flashing frequency LED (yellow) 1 Hz
Relay output 1 electrically isolated changeover contact
Max. switching voltage 250 V AC / 120 V DC
Max. switching current 5 A
Max. switching capacity 120 W / 1250 VA
Contact material AgNi 0.15
Dielectric strength contact-coil (AC, 1 min) 2.5 kV
Nominal voltage acc. to VDE 0110 Part 1/4.97,
IEC 60664-1 250 V / 4 kV / 2
Ambient operating temperature -25 °C ... +40 °C

Accessories Item No. Pack.
Unit
Terminal block for pluggable modules,
with 2-conductor terminal blocks, orange separator ➊ 22 mm / 0.866 in wide 280-638 1
with 4-conductor terminal blocks, orange separator ➋ 22 mm / 0.866 in wide 280-628 1
with 4-conductor terminal blocks, marker plate ➋ 25 mm / 0.984 in wide 280-764 1
wire range 0.08 mm² ... 2.5 mm² / AWG 28 ... 14;
stripped length 8 ... 9 mm / 0.33 in
