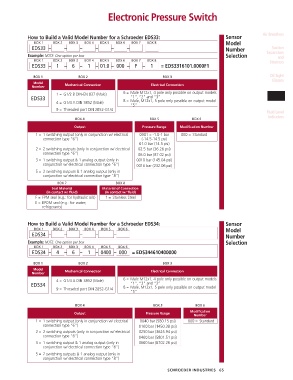

Electronic Pressure Switch

How to Build a Valid Model Number for a Schroeder EDS33: Sensor Air Breathers
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 Model
EDS33 – – – – – – Number Suction
Example: NOTE: One option per box Selection Separators
and
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 Strainers
EDS33 – 1 – 6 – 1 – 01.0 – 000 – F – 1 = EDS3316101.0000F1

BOX 1 BOX 2 BOX 3 Oil Sight
Glasses
Model
Number Mechanical Connection Electrical Connection
1 = G1/2 B DIN-EN 837 (Male) 6 = Male M12x1, 4 pole only possible on output models Electronic
EDS33 “1”, “2” and “3” Sensors
4 = G1/4 A DIN 3852 (Male) 8 = Male, M12x1, 5 pole only possible on output model
“5”
9 = Threaded port DIN 2852-G1/4
Fluid Level
Indicators
BOX 4 BOX 5 BOX 6
Output Pressure Range Modification Number
1 = 1 switching output (only in conjunction w/ electrical 0001 = -1.0-1 bar 000 = Standard
connection type “6”) (-14.5-14.5 psi)
01.0 bar (14.5 psi)
2 = 2 switching outputs (only in conjunction w/ electrical 02.5 bar (36.26 psi)
connection type “6”) 06.0 bar (87.02 psi)
3 = 1 switching output & 1 analog output (only in 0010 bar (145.04 psi)
conjunction w/ electrical connection type “6”) 0016 bar (232.06 psi)
5 = 2 switching outputs & 1 analog output (only in
conjunction w/ electrical connection type “8”)
BOX 7 BOX 8
Seal Material Material of Connection
(in contact w/ fluid) (in contact w/ fluid)
F = FPM seal (e.g.: for hydraulic oils) 1 = Stainless Steel
E = EPDM seal (e.g.: for water;
refrigerants)

How to Build a Valid Model Number for a Schroeder EDS34: Sensor
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 Model
EDS34 – – – – – Number
Example: NOTE: One option per box Selection
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
EDS34 – 4 – 6 – 1 – 0400 – 000 = EDS344610400000

BOX 1 BOX 2 BOX 3
Model
Number Mechanical Connection Electrical Connection
4 = G1/4 A DIN 3852 (Male) 6 = Male M12x1, 4 pole only possible on output models
EDS34 “1”, “2” and “3”
9 = Threaded port DIN 2852-G1/4 8 = Male, M12x1, 5 pole only possible on output model
“5”

BOX 4 BOX 5 BOX 6
Modification
Output Pressure Range
Number
1 = 1 switching output (only in conjunction w/ electrical 0040 bar (580.15 psi) 000 = Standard
connection type “6”) 0100 bar (1450.38 psi)
2 = 2 switching outputs (only in conjunction w/ electrical 0250 bar (3625.94 psi)
connection type “6”) 0400 bar (5801.51 psi)
3 = 1 switching output & 1 analog output (only in 0600 bar (8702.26 psi)
conjunction w/ electrical connection type “6”)
5 = 2 switching outputs & 1 analog output (only in
conjunction w/ electrical connection type “8”)

SCHROEDER INDUSTRIES 65
