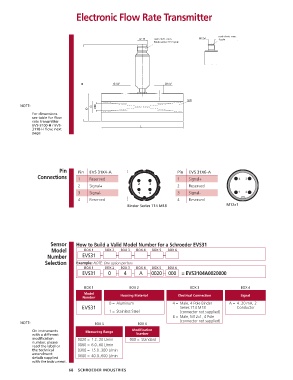

Electronic Flow Rate Transmitter

male electr. conn.
male electr. conn. 4 pole
Binder series 714 4 pole

NOTE:
For dimensions
see table for flow
rate transmitter
EVS-3100-H / EVS-
3110-H flow, next
page

Pin Pin EVS 31X4-A Pin EVS 31X6-A
Connections 1 Reserved 1 Signal+

2 Signal+ 2 Reserved
3 Signal- 3 Signal-
4 Reserved 4 Reserved
Binder Series 714 M18 M12x1

Sensor How to Build a Valid Model Number for a Schroeder EVS31
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Number EVS31 – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
EVS31 – 0 – 4 – A – 0020 – 000 = EVS3104A0020000

BOX 1 BOX 2 BOX 3 BOX 4
Model
Number Housing Material Electrical Connection Signal
0 = Aluminum 4 = Male, 4 Pole Binder A = 4..20 mA, 2
EVS31 Series 714 M18 Conductor
1 = Stainless Steel (connector not supplied)
6 = Male, M12x1, 4 Pole
NOTE: BOX 5 BOX 6 (connector not supplied)
On instruments Measuring Range Modification
with a different Number
modification 0020 = 1.2..20 L/min 000 = Standard
number, please
read the label or 0060 = 6.0..60 L/min
the technical 0300 = 15.0..300 L/min
amendment
details supplied 0600 = 40.0..600 L/min
with the instrument.
