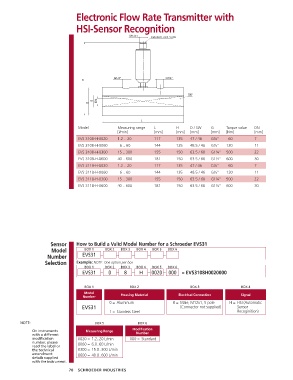

Electronic Flow Rate Transmitter with

HSI-Sensor Recognition

male electr. conn. 5 pole

Model Measuring range L H D / SW G Torque value DN
[l/min] [mm] [mm] [mm] [mm] [Nm] [mm]
EVS 3108-H-0020 1.2 .. 20 117 135 47 / 46 G¼" 60 7
EVS 3108-H-0060 6 .. 60 144 135 48.5 / 46 G½" 130 11
EVS 3108-H-0300 15 .. 300 155 150 63.5 / 60 G1¼" 500 22
EVS 3108-H-0600 40 .. 600 181 150 63.5 / 60 G1½" 600 30
EVS 3118-H-0020 1.2 .. 20 117 135 47 / 46 G¼" 60 7
EVS 3118-H-0060 6 .. 60 144 135 48.5 / 46 G½" 130 11
EVS 3118-H-0300 15 .. 300 155 150 63.5 / 60 G1¼" 500 22
EVS 3118-H-0600 40 .. 600 181 150 63.5 / 60 G1½" 600 30

Sensor How to Build a Valid Model Number for a Schroeder EVS31
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Number EVS31 – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
EVS31 – 0 – 8 – H – 0020 – 000 = EVS3108H0020000

BOX 1 BOX 2 BOX 3 BOX 4
Model
Number Housing Material Electrical Connection Signal
0 = Aluminum 8 = Male, M12x1, 5 pole H = HSI (Automatic
EVS31 (Connector not supplied) Sensor
1 = Stainless Steel Recoginition)

NOTE: BOX 5 BOX 6
On instruments Measuring Range Modification
Number
with a different
modification 0020 = 1.2..20 L/min 000 = Standard
number, please 0060 = 6.0..60 L/min
read the label or
the technical 0300 = 15.0..300 L/min
amendment 0600 = 40.0..600 L/min
details supplied
with the instrument.
70 SCHROEDER INDUSTRIES
