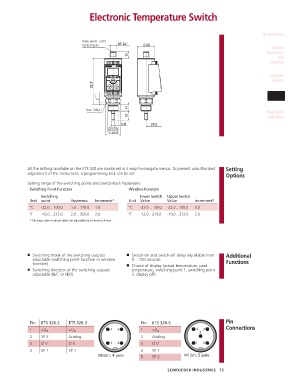

Electronic Temperature Switch

Air Breathers
male electr. conn.
4pole/5pole
Suction
Separators
and
Strainers

Oil Sight
Glasses

Electronic
Sensors

hex. SW27
Fluid Level
Indicators

All the settings available on the ETS 320 are combined in 2 easy-to-navigate menus. To prevent unauthorized Setting
adjustment of the instrument, a programming lock can be set Options

Setting range of the switching points and switch-back hystereses:
Switching Point Function Window Function
Switching lower Switch Upper Switch
Unit point Hysteresis Increment* Unit Value Value Increment*
°C -22.0 .. 100.0 1.0 .. 178.0 1.0 °C -23.0 .. 99.0 -22.0 .. 100.0 1.0
°F -10.0 .. 212.0 2.0 .. 320.0 2.0 °F -12.0 .. 210.0 -10.0 .. 212.0 2.0
* All ranges given in above tables are adjustable by increments shown

■ Switching mode of the switching outputs ■ Switch-on and switch-off delay adjustable from Additional
adjustable (switching point function or window 0 .. 750 seconds
function) ■ Choice of display (actual temperature, peak Functions
■ Switching direction of the switching outputs temperature, switching point 1, switching point
adjustable (N/C or N/O) 2, display off)

Pin ETS 326-2 ETS 326-3 Pin ETS 328-5 Pin
1 +U B +U B 1 +U B 4 3 Connections
5
2 SP 2 Analog 2 Analog
3 O V O V 3 O V 1 2
4 SP 1 SP 1 4 SP 1
M12x1, 4 pole 5 SP 2 M12x1, 5 pole

SCHROEDER INDUSTRIES 75
