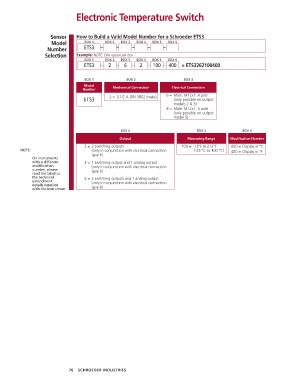

Electronic Temperature Switch

Sensor How to Build a Valid Model Number for a Schroeder ETS3
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
Number ETS3 – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
ETS3 – 2 – 6 – 2 – 100 – 400 = ETS3262100400

BOX 1 BOX 2 BOX 3
Model
Number Mechanical Connection Electrical Connection
ETS3 2 = G1/2 A DIN 3852 (male) 6 = Male, M12x1, 4 pole
(only possible on output
models 2 & 3)
8 = Male, M12x1, 5 pole
(only possible on output
model 5)

BOX 4 BOX 5 BOX 6
Output Measuring Range Modification Number
2 = 2 switching outputs 100 = -13°F to 212°F 000 = Display in °C
NOTE: (only in conjunction with electrical connection (-25 °C to 100 °C) 400 = Display in °F
type 6)
On instruments
with a different 3 = 1 switching output and 1 analog output
modification (only in conjunction with electrical connection
number, please type 6)
read the label or
the technical 5 = 2 switching outputs and 1 analog output
amendment (only in conjunction with electrical connection
details supplied type 8)
with the instrument.
