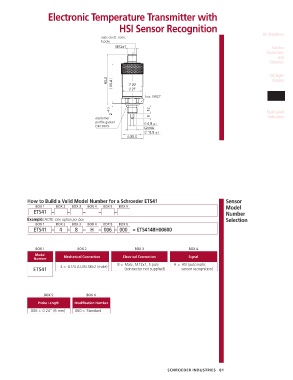

Electronic Temperature Transmitter with

HSI Sensor Recognition
Air Breathers
male electr. conn.
5 pole
Suction
Separators
and
Strainers

Oil Sight
Glasses

Electronic
hex. SW27
Sensors
Fluid Level
elastomer Indicators
profile gasket
DIN 3869

How to Build a Valid Model Number for a Schroeder ETS41 Sensor
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 Model
ETS41 – – – – – Number

Example: NOTE: One option per box Selection
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6
ETS41 – 4 – 8 – H – 006 – 000 = ETS4148H00600

BOX 1 BOX 2 BOX 3 BOX 4
Model
Number Mechanical Connection Electrical Connection Signal
8 = Male, M12x1, 5 pole H = HSI (automatic
ETS41 4 = G1/4 A DIN 3852 (male) (connector not supplied) sensor recognition)

BOX 5 BOX 6
Probe Length Modification Number
006 = 0.24” (6 mm) 000 = Standard
