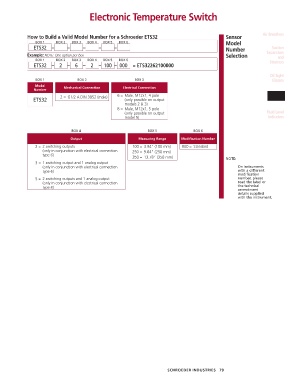

Page 81 - Schroeder - Accessories

Electronic Temperature Switch

How to Build a Valid Model Number for a Schroeder ETS32 Sensor Air Breathers
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 Model
ETS32 – – – – – Number Suction
Example: NOTE: One option per box Selection Separators
and
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 Strainers
ETS32 – 2 – 6 – 2 – 100 – 000 = ETS32262100000
Oil Sight
BOX 1 BOX 2 BOX 3 Glasses
Model
Number Mechanical Connection Electrical Connection Electronic
ETS32 2 = G1/2 A DIN 3852 (male) 6 = Male, M12x1, 4 pole Sensors
(only possible on output
models 2 & 3)
8 = Male, M12x1, 5 pole
(only possible on output Fluid Level
model 5) Indicators

BOX 4 BOX 5 BOX 6
Output Measuring Range Modification Number
2 = 2 switching outputs 100 = 3.94” (100 mm) 000 = Standard
(only in conjunction with electrical connection 250 = 9.84” (250 mm)
type 6)
350 = 13.78” (350 mm) NOTE:
3 = 1 switching output and 1 analog output
(only in conjunction with electrical connection On instruments
type 6) with a different
modification
5 = 2 switching outputs and 1 analog output number, please
(only in conjunction with electrical connection read the label or
type 8) the technical
amendment
details supplied
with the instrument.

SCHROEDER INDUSTRIES 79
