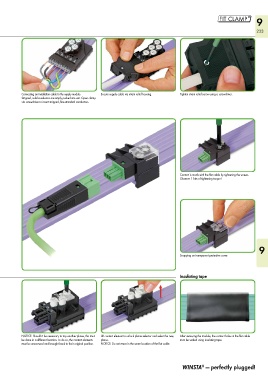

Connecting an installation cable to the supply module. Secure supply cable via strain relief housing. Tighten strain relief screw using a screwdriver.
Stripped, solid conductors are simply pushed into unit. Open clamp
via screwdriver to insert stripped, fine-stranded conductors.
Contact is made with the flat cable by tightening the screws.
Observe 1 Nm of tightening torque!
9
Snapping on transparent protective cover.
Insulating tape
NOTICE: Should it be necessary to tap another phase, this must Lift contact element to unlock phase selector and select the new After removing the module, the contact holes in the flat cable
be done in a different location. To do so, the contact elements phase. must be sealed using insulating tape.
must be unscrewed and brought back to their original position. NOTICE: Do not reuse in the same location of the flat cable.
