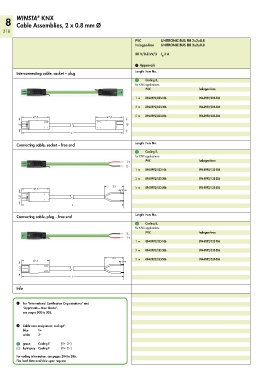

8 WINSTA KNX
Cable Assemblies, 2 x 0.8 mm Ø
218
PVC UNITRONIC BUS EIB 2x2x0.8
halogen-free UNITRONIC BUS EIB 2x2x0.8
50 V/0.8 kV/3 I 3 A
N
1 Approvals

Interconnecting cable, socket – plug Length Item No.
Coding E,
for KNX applications
PVC halogen-free
1 m 894-8992/033-106 894-8992/023-106

3 m 894-8992/033-306 894-8992/023-306

< <______ 47,5 ______> <______ 47,5 ______> < 5 m 894-8992/033-506 894-8992/023-506
14,1 14,1
> <____________________________________ L _____________________________________> >

Connecting cable, socket – free end Length Item No.
Coding E,
for KNX applications
1+ PVC halogen-free
2–
1 m 894-8992/133-106 894-8992/123-106

3 m 894-8992/133-306 894-8992/123-306
<____23____> 5 m 894-8992/133-506 894-8992/123-506
< <______ 47,5 ______> > 9 <
14,1
> <____________________________________ L _____________________________________>

Connecting cable, plug – free end Length Item No.

Coding E,
for KNX applications
2– PVC halogen-free
1+
1 m 894-8992/233-106 894-8992/223-106

3 m 894-8992/233-306 894-8992/223-306
<____23____> 5 m 894-8992/233-506 894-8992/223-506
< <______ 47,5 ______> > 9 <
14,1
> <____________________________________ L _____________________________________>

Info

1 For “International Certification Organizations” and
“Approvals — User Guide”,
see pages 300 to 303.

2 Cable core assignment, coding F:
blue 1+
white 2–
green Coding E (1+ 2–)
light gray Coding F (1+ 2–)

For coding information, see pages 284 to 286.
Fire load data available upon request.
