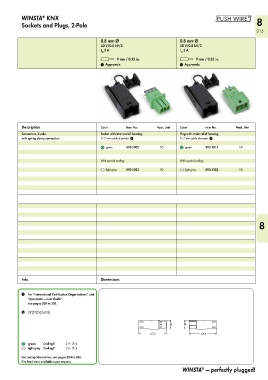

WINSTA KNX 8
®
Sockets and Plugs, 2-Pole
215
0.8 mm Ø 0.8 mm Ø
50 V/0.8 kV/3 50 V/0.8 kV/3
I 3 A I 3 A
N
N
l 9 mm / 0.35 in. l 9 mm / 0.35 in.
1 Approvals 1 Approvals
Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Connectors, 2-pole, Socket with strain relief housing, Plug with strain relief housing,
with spring clamp connection 5–7 mm cable diameter 2 5–7 mm cable diameter 2
green 893-1002 50 green 893-1012 50
With special coding: With special coding:
light gray 893-1022 50 light gray 893-1032 50
8
Info Dimensions
1 For “International Certification Organizations” and
“Approvals — User Guide”,
see pages 300 to 303.
2 2Y(ST)2x(2x0.8)
< 14 ,1 > <14 ,1 >
<______ 47,5 _____> <______ 47,5 _____>
green Coding E (1+ 2–)
light gray Coding F (1+ 2–)
For coding information, see pages 284 to 286.
Fire load data available upon request.
WINSTA — perfectly plugged!
®
