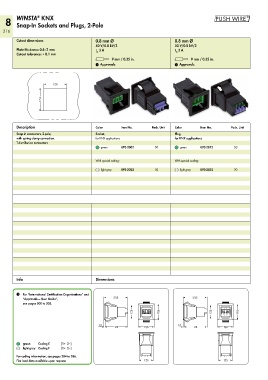

8 WINSTA KNX
Snap-In Sockets and Plugs, 2-Pole
216
Cutout dimensions 0.8 mm Ø 0.8 mm Ø
50 V/0.8 kV/3 50 V/0.8 kV/3
Plate thickness: 0.5–2 mm I 3 A I 3 A
Cutout tolerance: + 0.1 mm N N
l 9 mm / 0.35 in. l 9 mm / 0.35 in.
1 Approvals 1 Approvals

<_____17,8_____>
<_____17,8 _____>

Description Color Item No. Pack. Unit Color Item No. Pack. Unit
Snap-in connectors, 2-pole, Socket, Plug,
with spring clamp connection, for KNX applications for KNX applications
T-distribution connectors
green 893-2002 50 green 893-2012 50

With special coding: With special coding:
light gray 893-2022 50 light gray 893-2032 50

Info Dimensions

1 For “International Certification Organizations” and
“Approvals — User Guide”, <_____ 29,5 _____> <_____ 29,5 _____>
see pages 300 to 303.
<_ 17 ,5 _> <__ 19 ,6 __> <_ 17 ,5 _> <__ 19 ,6 __>

1,5
__> <_____ 28 _____> <__ 19,6 __> 1,5 <_____ 28 _____> <__ 19,6 __>
__>
green Coding E (1+ 2–)
light gray Coding F (1+ 2–)

For coding information, see pages 284 to 286.
Fire load data available upon request. <_ 17,5 _> <_ 17,5 _>
