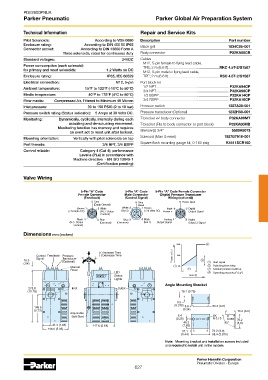

Page 627 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Parker Global Air Preparation System

Technical Information Repair and Service Kits
Pilot Solenoids: According to VDE 0580 Description Part number
Enclosure rating: According to DIN 400 50 IP65 Black grill 1834C05-001
Connector socket: According to DIN 43650 Form A
Three solenoids, rated for continuous duty Body connector P32KA00CB
Standard voltages: 24VDC Cables
M12, 5-pin female to flying lead cable,
Power consumption (each solenoid): TPE; 2 m (6.6 ft) ...................................................RKC 4.5T-2/S1587
for primary and reset solenoids: 1.2 Watts on DC M12, 5-pin male to flying lead cable,
Enclosure rating: IP65, IEC 60529 TPE; 2 m (6.6 ft) ...................................................RSC 4.5T-2/S1587
Electrical connection: M12, 5-pin Port block kit
Ambient temperature: 15°F to 122°F (-10°C to 50°C) 1/2 NPT .........................................................................P32KA94CP
3/4 NPT .........................................................................P32KA96CP
Media temperature: 40°F to 175°F (4°C to 80°C) 1/2 BSPP ......................................................................P32KA14CP
Flow media: Compressed Air, Filtered to Minimum 40 Micron 3/4 BSPP ......................................................................P32KA16CP
Inlet pressure: 30 to 150 PSIG (2 to 10 bar) Pressure switch 1227A30-001
Pressure switch rating (Status indicator): 5 Amps at 30 Volts DC. Pressure transducer (Optional) 1232H30-001
Monitoring: Dynamically, cyclically, internally during each T-bracket w/ body connector P32KA00MT
actuating and de-actuating movement. T-bracket (Fits to body connector or port block) P32KA00MB
Monitoring function has memory and requires
an overt act to reset unit after lockout. Silencer(s) 3/4" 5500A5013
Solenoid (Main & reset) 1527B7916-001
Mounting orientation: Vertically with pilot solenoids on top
Port threads: 3/4 NPT, 3/4 BSPP Square flush mounting gauge kit, 0-160 psig K4511SCR160
Control reliable: Category 4 (Cat 4); performance
Level e (PLe) in accordance with
Machine directive - EN ISO 13849-1
(Certification pending)

Valve Wiring

5-Pin “A” Code 5-Pin “A” Code 5-Pin “A” Code Female Connector
Female Connector Male Connector (Digital Pressure Transducer
(Feedback) (Control Signal) Wiring (optional))
5 Grey 5 Grey 5 Power input
(Equip Ground) Reset
Brown 1 2 White White 2 1 Brown Input 1 2 Digital
(+24 Volts DC) (N.O. Status (Sol 2) (+24 Volts DC) Power + Output Signal

Contact)
Black 4 3 Blue Blue 3 4 Black Analog 4 3 Digital
(N.C. Status (Common) (Common) (Sol 1) Output Signal Output 2 Signal
Contact)
Dimensions mm (inches)

100%

(+) Increase Time
Control Feedback Pressure - + (-) Decrease Time 60%
16.3 Signal Transducer 5
(Optional)
(.64) 1 2 Start signal
Manual 0% Switching time delay
Reset 3 Gradual pressure build up
LED 4 Operating pressure p 2 (=p 1 )
Status
SOL.1SOL.2 RESET SOL STATUS
Lights
Angle Mounting Bracket
273.8 Inlet Outlet
(10.78) 19.1 (0.75)
9.5
(0.375) 8.6 81.3 (3.2)
145.5
(5.73) (0.34) 76.2 (3.0)
Adjustable
Soft Start 6.4 8X R
(0.25) R 0.13 0.063 76.2
46.2 90° (3.0)
41.3 (1.63) 147.6 (5.81) (1.82)
136.0 (5.35)
11.1 76.2 (3.0)
(0.44) 98.4 (3.875)
Note: Mounting bracket and installation screws included
and required to install unit in the system.
Parker Hannifin Corporation
Pneumatic Division - Europe
627
