Parker Pneumatic Parker Global Air Preparation System

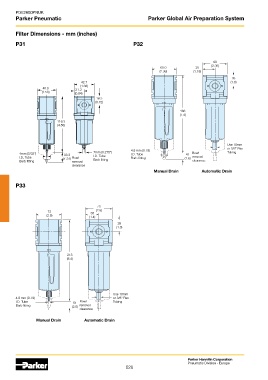

Filter Dimensions - mm (inches)

P31 P32

60
(2.36)
60.0 30
(2.36) (1.18)
26
42.7 (1.0)
(1.68)
40.0 21.3
(1.58) (0.84)
18.3
(0.72)
188
(7.4)
116.3
(4.58)

Use 10mm
or 3/8” Flex
4.8 mm (0.19)
7mm (0.275”)
4mm (5/32”) 33.3 I.D. Tube 41 Bowl Tubing

I.D. Tube (1.31) Bowl I.D. Tube Barb fitting (1.6) removal
Barb fitting removal Barb fitting clearance
clearance
Manual Drain Automatic Drain
P33

73
73 36 (2.9)
(2.9) (1.4)
26
(1.0)

213
(8.4)

Use 10mm
4.8 mm (0.19) or 3/8” Flex

I.D. Tube 51 Bowl Tubing
Barb fitting (2.0) removal
clearance
Manual Drain Automatic Drain
