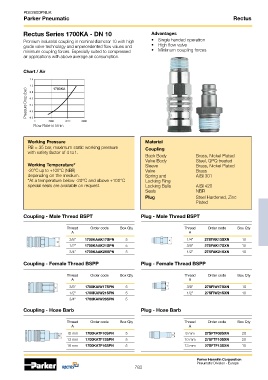

PDE2600PNUK
Parker Pneumatic Rectus

Rectus Series 1700KA - DN 10 Advantages

Premium industrial coupling in nominal diameter 10 with high • Single handed operation
grade valve technology and unprecedented flow values and • High flow valve
minimum coupling forces. Especially suited to compressed • Minimum coupling forces
air applications with above average air consumption.

Chart / Air

Pressure Drop (bar)

Flow Rate in l/min

Working Pressure Material
PB = 35 bar, maximum static working pressure Coupling
with safety factor of 4 to1.
Back Body Brass, Nickel Plated
Valve Body Steel, QPQ treated
Working Temperature* Sleeve Brass, Nickel Plated
-20°C up to +100°C (NBR) Valve Brass
depending on the medium. Spring and AISI 301
*At a temperature below -20°C and above +100°C Locking Ring
special seals are available on request. Locking Balls AISI 420
Seals NBR
Plug Steel Hardened, Zinc
Plated

Coupling - Male Thread BSPT Plug - Male Thread BSPT

Thread Order code Box Qty Thread Order code Box Qty
A A
3/8” 1700KAAK17SPN 5 1/4” 27SFAK13SXN 10
1/2” 1700KAAK21SPN 5 3/8” 27SFAK17SXN 10
3/4” 1700KAAK26SPN 5 1/2” 27SFAK21SXN 10

Coupling - Female Thread BSPP Plug - Female Thread BSPP

Thread Order code Box Qty Thread Order code Box Qty
A A
3/8” 1700KAIW17SPN 5 3/8” 27SFIW17SXN 10
1/2” 1700KAIW21SPN 5 1/2” 27SFIW21SXN 10
3/4” 1700KAIW26SPN 5

Coupling - Hose Barb Plug - Hose Barb

Thread Order code Box Qty Thread Order code Box Qty
A A
10 mm 1700KATF10SPN 5 8 mm 27SFTF08SXN 20
13 mm 1700KATF13SPN 5 10 mm 27SFTF10SXN 20
16 mm 1700KATF16SPN 5 13 mm 27SFTF13SXN 10

Parker Hannifin Corporation
Pneumatic Division - Europe
783
