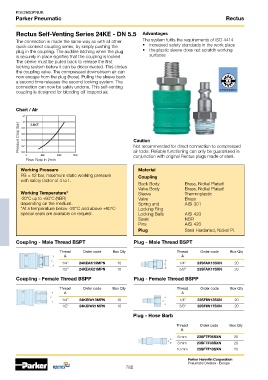

Rectus Self-Venting Series 24KE - DN 5.5 Advantages

The connection is made the same way as with all other The system fulfils the requirements of ISO 4414
quick connect coupling series, by simply pushing the • increased safety standards in the work place
plug in the coupling. The audible latching when the plug • the plastic sleeve does not scratch working
is securely in place signifies that the coupling is locked. surfaces
The sleeve must be pulled back to release the first
locking system before it can be disconnected. This closes
the coupling valve. The compressed downstream air can
now escape from the plug (hose). Pulling the sleeve back
a second time releases the second locking system. The
connection can now be safely undone. This self-venting
coupling is designed for bleeding off trapped air. Self-Venting System

Chart / Air

Pressure Drop (bar) Caution

Not recommended for direct connection to compressed
air tools. Reliable functioning can only be guaranteed in
conjunction with original Rectus plugs made of steel.
Flow Rate in l/min
Working Pressure Material
PB = 12 bar, maximum static working pressure Coupling
with safety factor of 4 to1.
Back Body Brass, Nickel Plated
Valve Body Brass, Nickel Plated
Working Temperature* Sleeve Thermoplastic
-20°C up to +60°C (NBR) Valve Brass
depending on the medium. Spring and AISI 301
*At a temperature below -20°C and above +60°C Locking Ring
special seals are available on request. Locking Balls AISI 420
Seals NBR
Pins AISI 420
Plug Steel Hardened, Nickel Pl.

Coupling - Male Thread BSPT Plug - Male Thread BSPT

Thread Order code Box Qty Thread Order code Box Qty
A A
1/4” 24KEAK13MPN 10 1/4” 23SFAK13SXN 20
1/2” 24KEAK21MPN 10 3/8” 23SFAK17SXN 20
Coupling - Female Thread BSPP Plug - Female Thread BSPP

Thread Order code Box Qty Thread Order code Box Qty
A A
1/4” 24KEIW13MPN 10 1/4” 23SFIW13SXN 20
1/2” 24KEIW21MPN 10 3/8” 23SFIW17SXN 20
Plug - Hose Barb

Thread Order code Box Qty
A
6 mm 23SFTF06SXN 20
8 mm 23SFTF08SXN 20
10 mm 23SFTF10SXN 20
