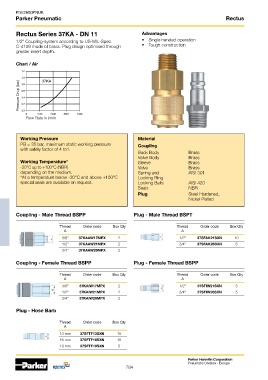

PDE2600PNUK
Parker Pneumatic Rectus

Rectus Series 37KA - DN 11 Advantages

1/2” Coupling-system according to US-MIL-Spec. • Single handed operation
C-4109 made of brass. Plug design optimised through • Tough construction
greater insert depth.

Chart / Air

Pressure Drop (bar)

Flow Rate in l/min

Working Pressure Material
PB = 35 bar, maximum static working pressure Coupling
with safety factor of 4 to1.
Back Body Brass
Valve Body Brass
Working Temperature* Sleeve Brass
-20°C up to +100°C (NBR) Valve Brass
depending on the medium. Spring and AISI 301
*At a temperature below -20°C and above +100°C Locking Ring
special seals are available on request. Locking Balls AISI 420
Seals NBR
Plug Steel Hardened,
Nickel Plated

Coupling - Male Thread BSPP Plug - Male Thread BSPT

Thread Order code Box Qty Thread Order code Box Qty
A A
3/8” 37KAAW17MPX 2 1/2” 37SFAK21SXN 10
1/2” 37KAAW21MPX 2 3/4” 37SFAK26SXN 5
3/4” 37KAAW26MPX 2

Coupling - Female Thread BSPP Plug - Female Thread BSPP

Thread Order code Box Qty Thread Order code Box Qty
A A
3/8” 37KAIW17MPX 2 1/2” 37SFIW21SXN 5
1/2” 37KAIW21MPX 2 3/4” 37SFIW26SXN 5
3/4” 37KAIW26MPX 2

Plug - Hose Barb

Thread Order code Box Qty
A
13 mm 37SFTF13SXN 10
16 mm 37SFTF16SXN 10
19 mm 37SFTF19SXN 5

Parker Hannifin Corporation
Pneumatic Division - Europe
784
