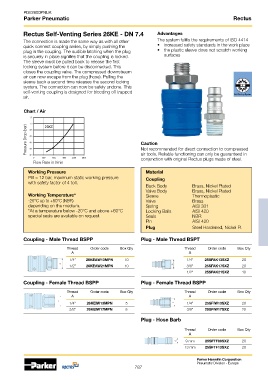

Rectus Self-Venting Series 26KE - DN 7.4 Advantages

The connection is made the same way as with all other The system fulfils the requirements of ISO 4414
quick connect coupling series, by simply pushing the • increased safety standards in the work place
plug in the coupling. The audible latching when the plug • the plastic sleeve does not scratch working
is securely in place signifies that the coupling is locked. surfaces
The sleeve must be pulled back to release the first
locking system before it can be disconnected. This
closes the coupling valve. The compressed downstream
air can now escape from the plug (hose). Pulling the
sleeve back a second time releases the second locking
system. The connection can now be safely undone. This
self-venting coupling is designed for bleeding off trapped
air. Self-Venting System

Chart / Air

Pressure Drop (bar) Caution

Not recommended for direct connection to compressed
air tools. Reliable functioning can only be guaranteed in
conjunction with original Rectus plugs made of steel.
Flow Rate in l/min

Working Pressure Material
PB = 12 bar, maximum static working pressure Coupling
with safety factor of 4 to1.
Back Body Brass, Nickel Plated
Valve Body Brass, Nickel Plated
Working Temperature* Sleeve Thermoplastic
-20°C up to +60°C (NBR) Valve Brass
depending on the medium. Spring AISI 301
*At a temperature below -20°C and above +60°C Locking Balls AISI 420
special seals are available on request. Seals NBR
Pin AISI 420
Plug Steel Hardened, Nickel Pl.

Coupling - Male Thread BSPP Plug - Male Thread BSPT

Thread Order code Box Qty Thread Order code Box Qty
A A
1/4” 26KEAW13MPN 10 1/4” 25SFAK13SXZ 20
1/2” 26KEAW21MPN 10 3/8” 25SFAK17SXZ 20
1/2” 25SFAK21SXZ 10
Coupling - Female Thread BSPP Plug - Female Thread BSPP

Thread Order code Box Qty Thread Order code Box Qty
A A
1/4” 26KEIW13MPN 5 1/4” 25SFIW13SXZ 20
3/8” 26KEIW17MPN 5 3/8” 25SFIW17SXZ 20

Plug - Hose Barb

Thread Order code Box Qty
A
9 mm 25SFTF09SXZ 20
13 mm 25SFTF13SXZ 20
