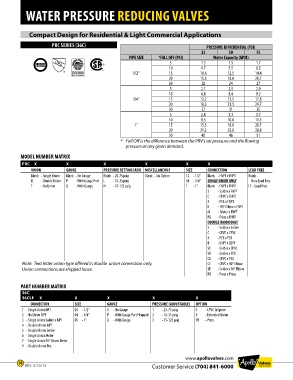

Page 10 - Apollo - Water Pressure Reducing Valves

WATER PRESSURE REDUCING VALVES

Compact Design for Residential & Light Commercial Applications

PRC SERIES (36C) PRESSURE DIFFERENTIAL (PSI)
25 50 75
PIPE SIZE *FALL OFF (PSI) Water Capacity (GPM)
5 1.3 1.5 1.7
10 4.7 5.5 6.3
1/2" 15 10.6 12.5 14.4
20 15.3 18.0 20.7
30 20 24 27
5 2.1 2.5 2.9
10 6.8 8.0 9.2
3/4" 15 13.2 15.5 17.8
20 18.3 21.5 24.7
30 27 31 35
5 2.8 3.3 3.7
10 8.5 10.0 11.5
1" 15 15.3 18.0 20.7
20 21.3 25.0 28.8
30 40 46 51
* Fall Off is the difference between the PRV’s set pressure and the flowing
pressure at any given demand.

MODEL NUMBER MATRIX
PRC X X X X X X
UNION GAUGE PRESSURE SETTING (ADJ) MISCELLANEOUS SIZE CONNECTION LEAD FREE
Blank - Single Union Blank - No Gauge Blank - 25-75 psig Blank - No Option 12 - 1/2” Blank - FNPT x FNPT Blank -
D - Double Union P - With Gauge Port L - 10-35 psig 34 - 3/4” SINGLE UNION ONLY Non-Lead Free
T - No Union G - With Gauge H - 75-125 psig 1 - 1” Blank - FNPT x FNPT LF - Lead Free
S - Solder x FNPT
C - CPVC x FNPT
X - PEX x FNPT
E - 90° Elbow x FNPT
M - Meter x FNPT
PR - Press x FNPT
DOUBLE UNION ONLY
S - Solder x Solder
C - CPVC x CPVC
X - PEX x PEX
B - BSPT x BSPT
SC - Solder x CPVC
SX - Solder x PEX
CX - CPVC x PEX
Note: Two letter union type offered in double union connection only. CE - CPVC x 90° Elbow
Union connections are shipped loose. SE - Solder x 90° Elbow
PR - Press x Press

PART NUMBER MATRIX
36C
36CLF X X X X X
CONNECTION SIZE GAUGE PRESSURE (ADJUSTABLE) OPTION
1 - Single Union NPT 03 - 1/2” 0 - No Gauge 1 - 25-75 psig C - CPVC Tailpiece
2 - No Union NPT 04 - 3/4” P - With Gauge Port Plugged 2 - 10-35 psig X - Extended Union
3 - Single Union Solder x NPT 05 - 1” G - With Gauge 3 - 75-125 psig PR - Press
4 - Double Union NPT
5 - Double Union Solder
6 - Single Union Meter
7 - Single Union 90° Elbow Meter
9 - Double Union Pex

www.apollovalves.com
10
REV. 5/10/13 Customer Service (704) 841-6000
