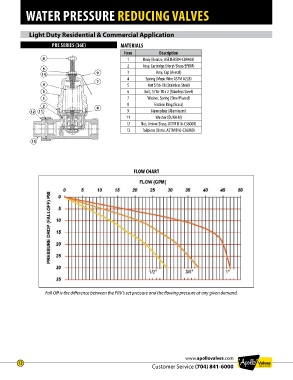

Page 12 - Apollo - Water Pressure Reducing Valves

WATER PRESSURE REDUCING VALVES

Light Duty Residential & Commercial Application

PRE SERIES (36E) MATERIALS
Item Description
6 1 Body (Bronze, ASTM B584-C84400)
2 Assy, Cartridge (Noryl/Brass/EPDM)
5
14 9 3 Assy, Cap (Acetal)
4 Spring (Music Wire ASTM A228)
7
4 5 Nut 5/16-18 (Stainless Steel)
3 6 Bolt, 5/16-18 x 2 (Stainless Steel)
1 7 Washer, Spring (Steel Plated)
2 8 8 Friction Ring (Brass)
12 11 9 Nameplate (Aluminum)
11 Washer (BUNA-N)
12 Nut, Union (Brass, ASTM B16-C36000)
13 Tailpiece (Brass, ASTM B16-C36000)

13

FLOW CHART

Fall Off is the difference between the PRV’s set pressure and the flowing pressure at any given demand.

www.apollovalves.com
12
Customer Service (704) 841-6000
