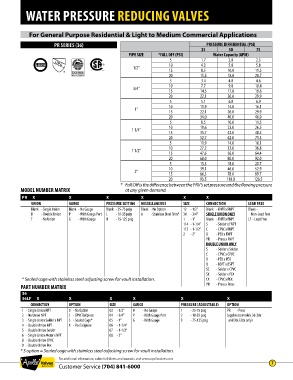

Page 7 - Apollo - Water Pressure Reducing Valves

WATER PRESSURE REDUCING VALVES

For General Purpose Residential & Light to Medium Commercial Applications

PR SERIES (36) PRESSURE DIFFERENTIAL (PSI)
25 50 75
PIPE SIZE *FALL OFF (PSI) Water Capacity (GPM)
5 1.7 2.0 2.3
10 4.3 5.0 5.8
1/2”
15 8.5 10.0 11.5
20 15.3 18.0 20.7
5 3.4 4.0 4.6
10 7.7 9.0 10.4
3/4”
15 14.5 17.0 19.6
20 22.1 26.0 29.9
5 5.1 6.0 6.9
10 11.9 14.0 16.1
1”
15 22.1 26.0 29.9
20 34.0 40.0 46.0
5 8.5 10.0 11.5
10 19.6 23.0 26.5
1 1/4”
15 35.7 42.0 48.3
20 52.7 62.0 71.3
5 11.9 14.0 16.1
10 27.2 32.0 36.8
1 1/2”
15 47.6 56.0 64.4
20 68.0 80.0 92.0
5 15.3 18.0 20.7
10 39.1 46.0 52.9
2”
15 66.3 78.0 89.7
20 93.5 110.0 126.5
* Fall Off is the difference between the PRV’s set pressure and the flowing pressure
MODEL NUMBER MATRIX at any given demand.
PR X X X X X X
UNION GAUGE PRESSURE SETTING MISCELLANEOUS SIZE CONNECTION LEAD FREE
Blank - Single Union Blank - No Gauge Blank - 25-75 psig Blank - No Option 12 - 1/2” Blank - FNPT x FNPT Blank -
D - Double Union P - With Gauge Port L - 10-35 psig A - Stainless Steel Trim* 34 - 3/4” SINGLE UNION ONLY Non-Lead Free
T - No Union G - With Gauge H - 75-125 psig 1 - 1” Blank - FNPT x FNPT LF - Lead Free
114 - 1-1/4” S - Solder x FNPT
112 - 1-1/2” C - CPVC x FNPT
2 - 2” X - PEX x FNPT
PR - Press x FNPT
DOUBLE UNION ONLY
S - Solder x Solder
C - CPVC x CPVC
X - PEX x PEX
B - BSPT x BSPT
SC - Solder x CPVC
SX - Solder x PEX
* Sealed cage with stainless steel adjusting screw for vault installation. CX - CPVC x PEX
PART NUMBER MATRIX PR - Press x Press
36
36LF X X X X X X
CONNECTION OPTION SIZE GAUGE PRESSURE (ADJUSTABLE) OPTION
1 - Single Union NPT 0 - No Option 03 - 1/2” 0 - No Gauge 1 - 25-75 psig PR - Press
2 - No Union NPT C - CPVC Tailpiece 04 - 3/4” P - With Gauge Port 2 - 10-35 psig (applies to models 36-20x
3 - Single Union Solder x NPT S - Sealed Cage* 05 - 1” G - With Gauge 3 - 75-125 psig and 36LF20x only)
4 - Double Union NPT X - Pex Tailpiece 06 - 1-1/4”
5 - Double Union Solder 07 - 1-1/2”
6 - Single Union Meter x NPT 08 - 2”
8 - Double Union CPVC
9 - Double Union Pex
* S option = Sealed cage with stainless steel adjusting screw for vault installation.
For additional information, submittal sheets and manuals, visit www.apollovalves.com
Customer Service (704) 841-6000 7
