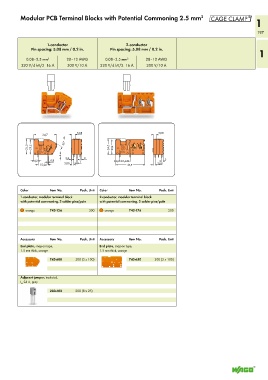

Page 199 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Modular PCB Terminal Blocks with Potential Commoning 2.5 mm 2 1

197

1-conductor 2-conductor
Pin spacing: 5.08 mm / 0.2 in. Pin spacing: 5.08 mm / 0.2 in. 1

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 16 A 300 V/10 A 320 V/4 kV/2 16 A 300 V/10 A

5,08 5,08
<____34,7 ____> > <___ > <___
<
<_24,5__> _ <_23,2 _> > 30° <_ 24,5 __> _ <_23,2 __> _

> 4 < 0,5 2
0,8
>6,2 < > <__ __> ( 1 ( <__ >6,2(15,24) < < 2
3,08
3,08
> 15,24 < ____> < ( <_ <_______ 43,5 _______> > <___

Color Item No. Pack. Unit Color Item No. Pack. Unit
1-conductor, modular terminal block 2-conductor, modular terminal block
with potential commoning, 2 solder pins/pole with potential commoning, 2 solder pins/pole

orange 742-126 300 orange 742-176 200

Accessory Item No. Pack. Unit Accessory Item No. Pack. Unit
End plate, snap-on type, End plate, snap-on type,
1.5 mm thick, orange 1.5 mm thick, orange
742-600 300 (3 x 100) 742-650 300 (3 x 100)

Adjacent jumper, insulated,
I 24 A, gray
N
280-402 200 (8 x 25)
