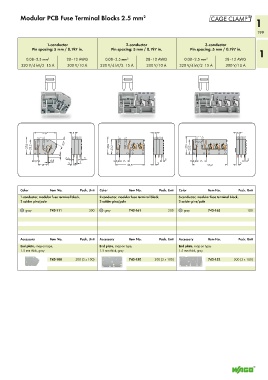

Page 201 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Modular PCB Fuse Terminal Blocks 2.5 mm 2 1

199

1-conductor 2-conductor 3-conductor
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in. 1

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 15 A 300 V/10 A 320 V/4 kV/2 15 A 300 V/10 A 320 V/4 kV/2 15 A 300 V/10 A

<____34,7____> < > 5 < > 5 < > 5 <
__ 27 ,4 ___> <_23,2 _> > 30° __ 27 ,4 ___> __ 23,2__> ___ 27 ,4 ___> < 23,2 __ >

<_ < <_ < < __
> 4 0,5 2
0,8
>6,2 < > <__ __> ( 1 ( <__ >6,2<_ 15 _> < < 2 >6,2 <15 > < < 2
3
<_ 15_> _> < ( <_ <_______ 43,5_______> >< 3 <_________53,2_________> >< 3
>

Color Item No. Pack. Unit Color Item No. Pack. Unit Color Item No. Pack. Unit
1-conductor, modular fuse terminal block, 2-conductor, modular fuse terminal block, 3-conductor, modular fuse terminal block,
2 solder pins/pole 2 solder pins/pole 2 solder pins/pole

gray 742-111 300 gray 742-161 200 gray 742-163 100

Accessory Item No. Pack. Unit Accessory Item No. Pack. Unit Accessory Item No. Pack. Unit
End plate, snap-on type, End plate, snap-on type, End plate, snap-on type,
1.5 mm thick, gray 1.5 mm thick, gray 1.5 mm thick, gray
742-100 300 (3 x 100) 742-150 300 (3 x 100) 742-152 300 (3 x 100)
