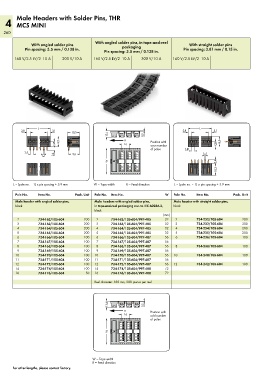

Page 262 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with Solder Pins, THR
4 MCS MINI
260

With angled solder pins, in tape-and-reel
With angled solder pins With straight solder pins
packaging
Pin spacing: 3.5 mm / 0.138 in. Pin spacing: 3.5 mm / 0.138 in. Pin spacing: 3.81 mm / 0.15 in.
160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A

L
<______ ______>
2,8 3,1
10,3
13,4 0,5
R
4,35 8,5 16 Position with
even number
3,5 9,3 ______> of poles
1x1 2,4
W
<______

L = (pole no. – 1) x pin spacing + 5.9 mm W = Tape width R = Feed direction L = (pole no. – 1) x pin spacing + 5.9 mm

Pole No. Item No. Pack. Unit Pole No. Item No. W Pole No. Item No. Pack. Unit
Male header with angled solder pins, Male headers with angled solder pins, Male header with straight solder pins,
black in tape-and-reel packaging acc. to IEC 60286-3, black
black
(mm)
2 734-162/105-604 200 2 734-162/105-604/997-405 32 2 734-232/105-604 200
3 734-163/105-604 200 3 734-163/105-604/997-405 32 3 734-233/105-604 200
4 734-164/105-604 200 4 734-164/105-604/997-405 32 4 734-234/105-604 200
5 734-165/105-604 200 5 734-165/105-604/997-405 32 5 734-235/105-604 200
6 734-166/105-604 100 6 734-166/105-604/997-407 56 6 734-236/105-604 100
7 734-167/105-604 100 7 734-167/105-604/997-407 56
8 734-168/105-604 100 8 734-168/105-604/997-407 56 8 734-238/105-604 100
9 734-169/105-604 100 9 734-169/105-604/997-407 56
10 734-170/105-604 100 10 734-170/105-604/997-407 56 10 734-240/105-604 100
11 734-171/105-604 100 11 734-171/105-604/997-407 56
12 734-172/105-604 100 12 734-172/105-604/997-407 56 12 734-242/105-604 100
14 734-174/105-604 100 14 734-174/105-604/997-408 72
16 734-176/105-604 50 16 734-176/105-604/997-408 72

Reel diameter: 330 mm, 280 pieces per reel

13,4 0,5
R Position with
16 odd number
______> of poles

W
<______

W = Tape width
R = Feed direction
For other lengths, please contact factory.
