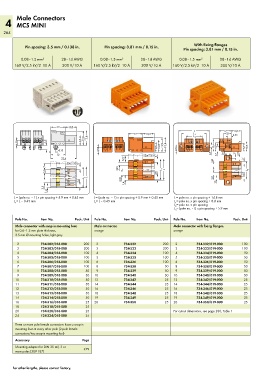

Page 266 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Connectors
4 MCS MINI
264

With fixing flanges
Pin spacing: 3.5 mm / 0.138 in. Pin spacing: 3.81 mm / 0.15 in. Pin spacing: 3.81 mm / 0.15 in.

0.08–1.5 mm 2 28–14 AWG 0.08–1.5 mm 2 28–14 AWG 0.08–1.5 mm 2 28–14 AWG
160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A 300 V/10 A

<___ 12 __><_ 10,3 > <___________ L ___________> <__12__><_ 10,3_>
__> > __ <__12__><_ 10,3_> (__________ L 1 __________) (_7,5 _) 3,55
> <__ L 2 ____> > <__
< 4,5 <_ 12,9 <_13,4
>4,35 __> <8,5 _ _ _ 4,35< 8,5> < 10,8_> <_12,9__> <_ 13,4__> 4,35< > < 13,4 __> > > <10,8 _ >
4,15
> <____ < _ _ _ > 2,5 __> ____ _ __> <9,2> 2,5 <8,5_ _ _
<__12 __> > 3,1 _ 5,7 ___> _) 1,3 <_ _ 2,75 <_ _
<
<______ 22,4 ______> > 7,62 ) (___ <_ 3,81 ) ) 3,1 <_ _
) 3, <_ 1 _ > _ _____> _ _____ > __ < > _ _____ >
(7 > > 3,81 __> > L >
>3,5 > L _ _____ _) 2,8 ___) <_____ L 1 _ <_____ _ > _) 2,8 ___) <_____ L 3 _
8 ___ 2, <_____L 1 _ _____ 3,81 1,4 ___ > > > 3,81 1,5 __> __ > >
>
5 ___ > _) ) <_____ __
3, > >
1,4 __
L = (pole no. – 1) x pin spacing + 5.9 mm + 0.45 mm L = (pole no. – 1) x pin spacing + 5.9 mm + 0.45 mm L = pole no. x pin spacing + 14.8 mm
L = L – 0.45 mm L = L – 0.45 mm L = pole no. x pin spacing + 8.8 mm
1
1
1
L = pole no. x pin spacing
2
L = (pole no. –1) x pin spacing + 5.9 mm
3
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Male connector with snap-in mounting feet, Male connector, Male connector with fixing flanges,
for 0.6–1.2 mm plate thickness, orange orange
3.5 mm Ø mounting holes, light gray
2 734-302/018-000 200 2 734-332 200 2 734-332/019-000 100
3 734-303/018-000 200 3 734-333 200 3 734-333/019-000 100
4 734-304/018-000 100 4 734-334 100 4 734-334/019-000 50
5 734-305/018-000 100 5 734-335 100 5 734-335/019-000 50
6 734-306/018-000 100 6 734-336 100 6 734-336/019-000 50
7 734-307/018-000 100 8 734-338 50 8 734-338/019-000 50
8 734-308/018-000 50 9 734-339 50 9 734-339/019-000 50
9 734-309/018-000 50 10 734-340 50 10 734-340/019-000 50
10 734-310/018-000 50 12 734-342 25 12 734-342/019-000 25
11 734-311/018-000 50 14 734-344 25 14 734-344/019-000 25
12 734-312/018-000 50 16 734-346 25 16 734-346/019-000 25
13 734-313/018-000 50 18 734-348 25 18 734-348/019-000 25
14 734-314/018-000 50 19 734-349 25 19 734-349/019-000 25
16 734-316/018-000 25 20 734-350 25 20 734-350/019-000 25
18 734-318/018-000 25
20 734-320/018-000 25 For cutout dimensions, see page 280, Table 1
24 734-324/018-000 25
Three or more pole female connectors have a snap-in
mounting foot at every other pole (2-pole female
connectors/two snap-in mounting feet)
Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-187)

For other lengths, please contact factory.
