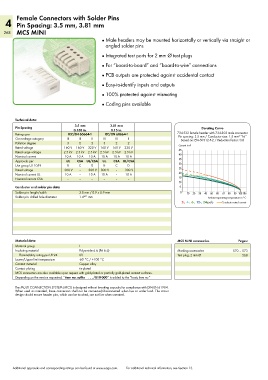

Female Connectors with Solder Pins
   4 Pin Spacing: 3.5 mm, 3.81 mm
   268 MCS MINI
                                              ●  Male headers may be mounted horizontally or vertically via straight or
                                                angled solder pins
                                              ● Integrated test ports for 2 mm Ø test plugs

                                              ●  For “board-to-board” and “board-to-wire” connections

                                              ● PCB outputs are protected against accidental contact
                                              ● Easy-to-identify inputs and outputs

                                              ●  100% protected against mismating

                                              ●  Coding pins available


        Technical data:

        Pin Spacing               3.5 mm          3.81 mm                                  Derating Curve
                                  0.138 in.       0.15 in.
        Ratings per            IEC/EN 60664-1   IEC/EN 60664-1                  734-532 female header with 734-302 male connector
                                                                                Pin spacing: 3.5 mm / Conductor size: 1.5 mm  “f-st”
                                                                                                           2
        Overvoltage category   III  III   II   III  III   II                     Based on: EN 60512-5-2 / Reduction factor: 0.8
        Pollution degree       3    2     2    3    2     2                     Current in A
        Rated voltage        160 V  160 V  320 V  160 V  160 V  320 V           45
        Rated surge voltage  2.5 kV  2.5 kV  2.5 kV  2.5 kV  2.5 kV  2.5 kV
        Nominal current       10 A  10 A  10 A  10 A  10 A  10 A                40
        Approvals per         UL   CSA UL/CSA  UL  CSA UL/CSA                   35
        Use group UL 1059      B    C     D    B    C     D                     30
        Rated voltage         300 V  –   300 V  300 V  –   300 V                25
        Nominal current UL    10 A  –    10 A  10 A  –   10 A                   20
        Nominal current CSA    –    –     –    –    –     –                     15
                                                                                10
        Conductor and solder pin data:                                           5
        Solder pin: length/width    3.8 mm / 0.9 x 0.9 mm                        0  10  20  30  40  50  60  70  80  90 100105
        Solder pin: drilled hole diameter  1.4 +0.1  mm                                      Ambient operating temperature in °C
                                                                                  2-,  4-,  6-,  12-,  24-pole  Conductor rated current









        Material data:                                                          MCS MINI accessories       Pages:
        Material group              I
        Insulating material         Polyamide 6.6 (PA 6.6)                      Marking accessories     570 – 573
          Flammability rating per UL 94  0V                                     Test plug, 2 mm Ø            568
        Lower/Upper limit temperature  -60 °C / +100 °C
        Contact material            Copper alloy
        Contact plating             tin-plated
        MCS connectors are also available upon request with gold-plated or partially gold-plated contact surfaces.
        Depending on the version requested, “item no. suffix    . . . /010-000” is added to the “basic item no.”

        The MULTI CONNECTION SYSTEM (MCS) is designed without breaking capacity for compliance with DIN EN 61984.
        When used as intended, these connectors shall not be connected/disconnected when live or under load. The circuit
        design should ensure header pins, which can be touched, are not live when unmated.


















       Additional approvals and corresponding ratings can be found at www.wago.com.   For additional technical information, see Section 13.
