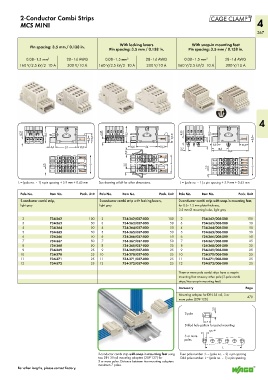

Page 269 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

2-Conductor Combi Strips
MCS MINI 4
267

With locking levers With snap-in mounting feet
Pin spacing: 3.5 mm / 0.138 in. Pin spacing: 3.5 mm / 0.138 in. Pin spacing: 3.5 mm / 0.138 in.

0.08–1.5 mm 2 28–14 AWG 0.08–1.5 mm 2 28–14 AWG 0.08–1.5 mm 2 28–14 AWG
160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A 300 V/10 A

4

__>
4,35 18,5 4,35 18,5 4,35
4,5
8,5 10,5 8,5 10,5 __> <___18,5 8,5
6,6 < 10,3
6,6 <______ 24 ____> 10,3 6,6 <______ 24 ____> 10,3
( 3,2 < < <___ 18,6 ___>
__>
5,9 <__________40,9 __________>
3,5 L 3,5 L L
3,5

L = (pole no. – 1) x pin spacing + 5.9 mm + 0.45 mm See drawing at left for other dimensions. L = (pole no. – 1) x pin spacing + 5.9 mm + 0.45 mm

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
2-conductor combi strip, 2-conductor combi strip with locking levers, 2-conductor combi strip with snap-in mounting feet,
light gray light gray for 0.6–1.2 mm plate thickness,
3.5 mm Ø mounting holes, light gray

2 734-362 100 2 734-362/037-000 100 2 734-362/008-000 100
3 734-363 50 3 734-363/037-000 50 3 734-363/008-000 50
4 734-364 50 4 734-364/037-000 50 4 734-364/008-000 50
5 734-365 50 5 734-365/037-000 50 5 734-365/008-000 50
6 734-366 50 6 734-366/037-000 50 6 734-366/008-000 50
7 734-367 50 7 734-367/037-000 50 7 734-367/008-000 25
8 734-368 50 8 734-368/037-000 25 8 734-368/008-000 25
9 734-369 25 9 734-369/037-000 25 9 734-369/008-000 25
10 734-370 25 10 734-370/037-000 25 10 734-370/008-000 25
11 734-371 25 11 734-371/037-000 25 11 734-371/008-000 25
12 734-372 25 12 734-372/037-000 25 12 734-372/008-000 25

Three or more pole combi strips have a snap-in
mounting foot at every other pole (2-pole combi
strips/two snap-in mounting feet)
Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-120)

3,5
2-pole

<7>
Drilled hole pattern for panel mounting
3,5 +0,1
3 or more
poles

<____________ L ___________>
2-conductor combi strip with snap-in mounting feet using Even pole number : L = (pole no. – 2) x pin spacing
two DIN 35-rail mounting adapters (209-137) for Odd pole number: L = (pole no. – 1) x pin spacing
3 or more poles. Distance between two mounting adapters:
maximum 7 poles.
For other lengths, please contact factory.
