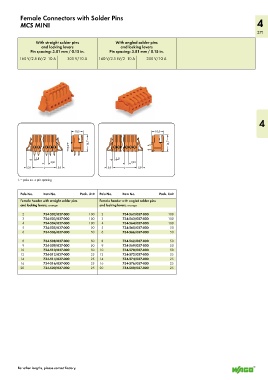

Page 273 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Female Connectors with Solder Pins
MCS MINI 4
271

With straight solder pins With angled solder pins
and locking levers and locking levers
Pin spacing: 3.81 mm / 0.15 in. Pin spacing: 3.81 mm / 0.15 in.

160 V/2.5 kV/2 10 A 300 V/10 A 160 V/2.5 kV/2 10 A 300 V/10 A

4

10,5 10,5

14,7 14,7
8,2

1,8 1,8
3,81 3,81
5,9 L 5,9 5,9 L 5,9

L = pole no. x pin spacing

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Female header with straight solder pins Female header with angled solder pins
and locking levers, orange and locking levers, orange

2 734-502/037-000 100 2 734-562/037-000 100
3 734-503/037-000 100 3 734-563/037-000 100
4 734-504/037-000 100 4 734-564/037-000 100
5 734-505/037-000 50 5 734-565/037-000 50
6 734-506/037-000 50 6 734-566/037-000 50
8 734-508/037-000 50 8 734-568/037-000 50
9 734-509/037-000 50 9 734-569/037-000 50
10 734-510/037-000 50 10 734-570/037-000 50
12 734-512/037-000 25 12 734-572/037-000 25
14 734-514/037-000 25 14 734-574/037-000 25
16 734-516/037-000 25 16 734-576/037-000 25
20 734-520/037-000 25 20 734-580/037-000 25

For other lengths, please contact factory.
