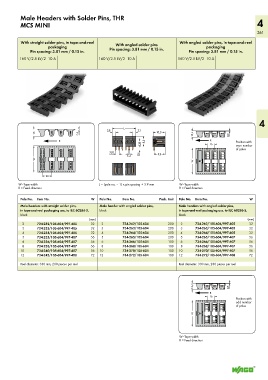

Page 263 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with Solder Pins, THR
MCS MINI 4
261

With straight solder pins, in tape-and-reel With angled solder pins With angled solder pins, in tape-and-reel
packaging packaging
Pin spacing: 3.81 mm / 0.15 in. Pin spacing: 3.81 mm / 0.15 in. Pin spacing: 3.81 mm / 0.15 in.

160 V/2.5 kV/2 10 A 160 V/2.5 kV/2 10 A 160 V/2.5 kV/2 10 A

4

15 0,5 13,4 0,5
R R Position with
16 even number
______> ______> of poles

W W
<______ <______

20
W=Tape width L = (pole no. – 1) x pin spacing + 5.9 mm W=Tape width
R = Feed direction R = Feed direction

Pole No. Item No. W Pole No. Item No. Pack. Unit Pole No. Item No. W
Male headers with straight solder pins, Male header with angled solder pins, Male headers with angled solder pins,
in tape-and-reel packaging acc. to IEC 60286-3, black in tape-and-reel packaging acc. to IEC 60286-3,
black black
(mm) (mm)
2 734-232/105-604/997-405 32 2 734-262/105-604 200 2 734-262/105-604/997-405 32
3 734-233/105-604/997-405 32 3 734-263/105-604 200 3 734-263/105-604/997-405 32
4 734-234/105-604/997-405 32 4 734-264/105-604 200 4 734-264/105-604/997-405 32
5 734-235/105-604/997-407 56 5 734-265/105-604 200 5 734-265/105-604/997-407 56
6 734-236/105-604/997-407 56 6 734-266/105-604 100 6 734-266/105-604/997-407 56
8 734-238/105-604/997-407 56 8 734-268/105-604 100 8 734-268/105-604/997-407 56
10 734-240/105-604/997-407 56 10 734-270/105-604 100 10 734-270/105-604/997-407 56
12 734-242/105-604/997-408 72 12 734-272/105-604 100 12 734-272/105-604/997-408 72
Reel diameter: 330 mm, 200 pieces per reel Reel diameter: 330 mm, 280 pieces per reel

13,4 0,5
R
16
Position with
odd number
______> of poles
W
<______

W=Tape width
R = Feed direction
