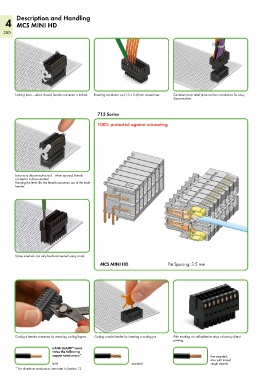

Page 282 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Description and Handling
4 MCS MINI HD
280

Locking lever — when closed, female connector is locked. Inserting conductor via (2.5 x 0.4) mm screwdriver. Centered strain relief plate anchors conductors for easy
disconnection.

713 Series

100% protected against mismating

Lever as a disconnection aid — when opened, female
connector is disconnected.
Rotating the lever lifts the female connector out of the male
header.

Screw interlock can only be disconnected using a tool.
MCS MINI HD Pin Spacing: 3.5 mm

Coding a female connector by removing coding fingers. Coding a male header by inserting a coding pin. Pole marking via self-adhesive strips or factory direct
printing.
CAGE CLAMP termi-
®
nates the following
copper conductors:* fine-stranded,
also with tinned
solid stranded single strands
* For aluminum conductors, see notes in Section 13.
