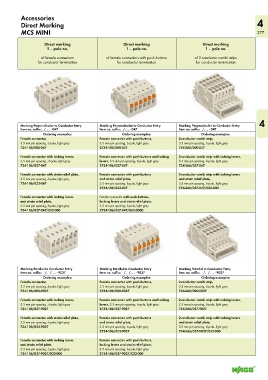

Page 279 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Accessories
Direct Marking 4
MCS MINI 277

Direct marking Direct marking Direct marking
1 – pole no. 1 – pole no. 1 – pole no.

of female connectors of female connectors with push-buttons of 2-conductor combi strips
for conductor termination for conductor termination for conductor termination

4
Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry
Item no. suffix: /. . . - 047 Item no. suffix: /. . . - 047 Item no. suffix: /. . . - 047
Ordering examples: Ordering examples: Ordering examples:
Female connector, Female connector with push-buttons, 2-conductor combi strip,
3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
734-106/000-047 2734-106/000-047 734-366/000-047

Female connector with locking levers, Female connector with push-buttons and locking 2-conductor combi strip with locking levers,
3.5 mm pin spacing , 6-pole, light gray levers, 3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
734-106/037-047 2734-106/037-047 734-366/037-047

Female connector with strain relief plate, Female connector with push-buttons 2-conductor combi strip with locking levers
3.5 mm pin spacing, 6-pole, light gray and strain relief plate, and strain relief plate,
734-106/033-047 3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
2734-106/033-047 734-366/037-047/033-000

Female connector with locking levers Female connector with push-buttons,
and strain relief plate, locking levers and strain relief plate,
3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
734-106/037-047/033-000 2734-106/037-047/033-0000

Marking Parallel to Conductor Entry Marking Parallel to Conductor Entry Marking Parallel to Conductor Entry
Item no. suffix: /. /. . . - 9037 Item no. suffix: /. /. . . - 9037 Item no. suffix: /. /. . . - 9037
Ordering examples: Ordering examples: Ordering examples:
Female connector, Female connector with push-buttons, 2-conductor combi strip,
3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
734-106/000-9037 2734-106/000-9037 734-366/000-9037
Female connector with locking levers, Female connector with push-buttons and locking 2-conductor combi strip with locking levers,
3.5 mm pin spacing , 6-pole, light gray levers, 3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
734-106/037-9037 2734-106/037-9037 734-366/037-9037
Female connector with strain relief plate, Female connector with push-buttons 2-conductor combi strip with locking levers
3.5 mm pin spacing, 6-pole, light gray and strain relief plate, and strain relief plate,
734-106/033-9037 3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
2734-106/033-9037 734-366/037-9037/033-000

Female connector with locking levers Female connector with push-buttons,
and strain relief plate, locking levers and strain relief plate,
3.5 mm pin spacing, 6-pole, light gray 3.5 mm pin spacing, 6-pole, light gray
734-106/037-9037/033-000 2734-106/037-9037/033-000
