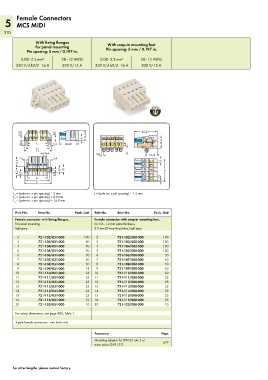

Page 312 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Female Connectors
5 MCS MIDI
310

With fixing flanges With snap-in mounting feet
for panel mounting
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 16 A 300 V/15 A 320 V/4 kV/2 16 A 300 V/15 A

2,6 __> > ( 14,3 _ ) <_____ 26,45_____>
6 _
3,55 ___>
>
<
2,6 <____ L 1 ____> 3,4 <__ 26,45 __> < 4,5 <_14,3_>
< ___ < < <__ __
<______ L 2 ______>
<________ L 3 ________>
> 5 < 2,6 > 12,15 <
__> <
3,4
(_ 1 4,6 _) 2,6 <__ ( ( <__ > > > 5 _
8,2 ) > 4,7 2,6 <__ > 5,1 7,0 < <______L ______>
> > <____ L 1 ____> 1,5 <_ _
<___ ___ L 2 ______>
<________ L 3 ________> (_
L = (pole no. x pin spacing) + 3 mm L = (pole no. x pin spacing) + 1.5 mm
1
L = (pole no. x pin spacing) + 8.8 mm
2
L = (pole no. x pin spacing) + 14.8 mm
3
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Female connector with fixing flanges, Female connector with snap-in mounting feet,
for panel mounting, for 0.6–1.2 mm plate thickness,
light gray 3.5 mm Ø mounting holes, light gray
2 721-102/031-000 100 2 721-102/008-000 100
3 721-103/031-000 50 3 721-103/008-000 100
4 721-104/031-000 50 4 721-104/008-000 100
5 721-105/031-000 50 5 721-105/008-000 100
6 721-106/031-000 50 6 721-106/008-000 50
7 721-107/031-000 50 7 721-107/008-000 50
8 721-108/031-000 50 8 721-108/008-000 50
9 721-109/031-000 25 9 721-109/008-000 50
10 721-110/031-000 25 10 721-110/008-000 50
11 721-111/031-000 25 11 721-111/008-000 25
12 721-112/031-000 25 12 721-112/008-000 25
13 721-113/031-000 25 13 721-113/008-000 25
14 721-114/031-000 25 14 721-114/008-000 25
15 721-115/031-000 25 15 721-115/008-000 25
16 721-116/031-000 10 16 721-116/008-000 25
20 721-120/031-000 10 20 721-120/008-000 10
For cutout dimensions, see page 488, Table 1.

2-pole female connectors - one latch only

Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-137)

For other lengths, please contact factory.
