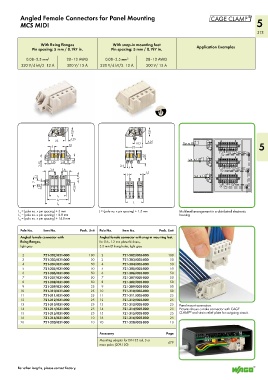

Page 315 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Angled Female Connectors for Panel Mounting
MCS MIDI 5
313

With fixing flanges With snap-in mounting feet
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in. Application Examples

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 12 A 300 V/ 15 A 320 V/4 kV/2 12 A 300 V/ 15 A

(_13,1_) (_13,1_)

4,25
<___23___> <___ 4,25
1,5 > 10,2 <___ 5
5 < <__ <___23___>
< < 4,5 <__
1,45
3,55 ___> > <___ 1,45 < 2,6 __> 2,4 >
___>
3,4 2,6 __> 5 <
> <__ __> <
1,5
< 5 > <__
< 1 5, <__ < > 6,7
7
> > 2,5 __> (12,8_ )
<____ L 1 ____> _
<_____ L 2 _____>
<______ _ L 3 _______> <____ L ____>
L = (pole no. x pin spacing) + 3 mm L = (pole no. x pin spacing) + 1.5 mm Multilevel arrangement in a distributed electronic
1
L = (pole no. x pin spacing) + 8.8 mm housing
2
L = (pole no. x pin spacing) + 14.8 mm
3
Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Angled female connector with Angled female connector with snap-in mounting feet,
fixing flanges, for 0.6–1.2 mm plate thickness,
light gray 3.5 mm Ø fixing holes, light gray
2 721-302/031-000 100 2 721-302/008-000 100
3 721-303/031-000 50 3 721-303/008-000 50
4 721-304/031-000 50 4 721-304/008-000 50
5 721-305/031-000 50 5 721-305/008-000 50
6 721-306/031-000 50 6 721-306/008-000 50
7 721-307/031-000 50 7 721-307/008-000 50
8 721-308/031-000 50 8 721-308/008-000 50
9 721-309/031-000 25 9 721-309/008-000 50
10 721-310/031-000 25 10 721-310/008-000 50
11 721-311/031-000 25 11 721-311/008-000 25
12 721-312/031-000 25 12 721-312/008-000 25
13 721-313/031-000 25 13 721-313/008-000 25 Panel-mount connectors
14 721-314/031-000 25 14 721-314/008-000 25 Pictures shows a male connector with CAGE
®
15 721-315/031-000 25 15 721-315/008-000 25 CLAMP and strain relief plate for outgoing circuit.
16 721-316/031-000 10 16 721-316/008-000 25
20 721-320/031-000 10 20 721-320/008-000 10

Accessory Page
Mounting adapter for DIN 35 rail, 3 or 479
more poles (209-120)

For other lengths, please contact factory.
