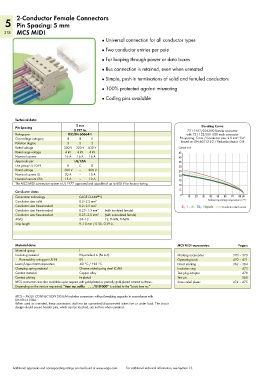

Page 320 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

2-Conductor Female Connectors
5 Pin Spacing: 5 mm
318 MCS MIDI
● Universal connection for all conductor types

● Two conductor entries per pole
● For looping through power or data buses

● Bus connection is retained, even when unmated

● Simple, push-in terminations of solid and ferruled conductors

● 100% protected against mismating
● Coding pins available

Technical data:

Pin Spacing 5 mm Derating Curve
0.197 in. 721-2102/026-000 female connector
Ratings per IEC/EN 60664-1 with 721-132/001-000 male connector
2
Overvoltage category III III II Pin spacing: 5 mm / Conductor size: 2.5 mm “f-st”
Pollution degree 3 2 2 Based on: EN 60512-5-2 / Reduction factor: 0.8
Rated voltage 320 V 320 V 630 V Current in A
Rated surge voltage 4 kV 4 kV 4 kV 45
Nominal current 16 A 16 A 16 A 40
Approvals per UL/CSA 35
Use group UL 1059 B C D 30
Rated voltage 300 V – 300 V 25
Nominal current UL 20 A – 10 A 20
Nominal current CSA 15 A – 10 A 15
The MCS MIDI connection system is UL 1977 approved and capable of up to 600 V for factory wiring. 10
Conductor data: 5
Connection technology CAGE CLAMP S 0 10 20 30 40 50 60 70 80 85
®
Conductor size: solid 0.2–2.5 mm 2 Ambient operating temperature in °C
Conductor size: fine-stranded 0.2–2.5 mm 2 2-, 4-, 6-, 12-, 16-pole Conductor rated current
Conductor size: fine-stranded 0.25–1.5 mm 2 (with insulated ferrule)
Conductor size: fine-stranded 0.25–2.5 mm 2 (with uninsulated ferrule)
AWG 24–12 12: THHN, THWN
Strip length 9–10 mm / 0.35–0.39 in.

Material data: MCS MIDI accessories: Pages:
Material group I
Insulating material Polyamide 6.6 (PA 6.6) Marking accessories 570 – 573
Flammability rating per UL 94 0V Operating tools 470 – 471
Lower/Upper limit temperature -60 °C / +85 °C Direct marking 362 – 364
Clamping spring material Chrome nickel spring steel (CrNi) Insulation stop 473
Contact material Copper alloy Test plug adapter 478
Contact plating tin-plated Test pin 568
MCS connectors are also available upon request with gold-plated or partially gold-plated contact surfaces. Strain relief plates 474 – 475
Depending on the version requested, “item no. suffix . . . /010-000” is added to the “basic item no.”
MCS — MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with
DIN EN 61984.
When used as intended, these connectors shall not be connected/disconnected when live or under load. The circuit
design should ensure header pins, which can be touched, are not live when unmated.

Additional approvals and corresponding ratings can be found at www.wago.com. For additional technical information, see Section 13.
