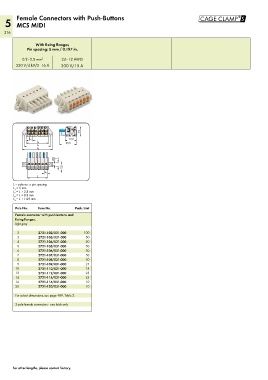

Page 318 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

!

Female Connectors with Push-Buttons
5 MCS MIDI
316

With fixing flanges
Pin spacing: 5 mm / 0.197 in.

0.2–2.5 mm 2 24–12 AWG
320 V/4 kV/2 16 A 300 V/15 A

15
L 1 < 17,2
L 2 25,6
<
L 3
L 4
2,6 7
7,5
<
L 1
L
<
L = pole no. x pin spacing
L = 5 mm
1
L = L + 2.8 mm
2
L = L + 8.8 mm
3
L = L + 14.8 mm
4
Pole No. Item No. Pack. Unit
Female connector with push-buttons and
fixing flanges,
light gray
2 2721-102/031-000 100
3 2721-103/031-000 50
4 2721-104/031-000 50
5 2721-105/031-000 50
6 2721-106/031-000 50
7 2721-107/031-000 50
8 2721-108/031-000 50
9 2721-109/031-000 25
10 2721-110/031-000 25
12 2721-112/031-000 25
14 2721-114/031-000 25
16 2721-116/031-000 10
20 2721-120/031-000 10
For cutout dimensions, see page 489, Table 2.

2-pole female connectors - one latch only

For other lengths, please contact factory.
