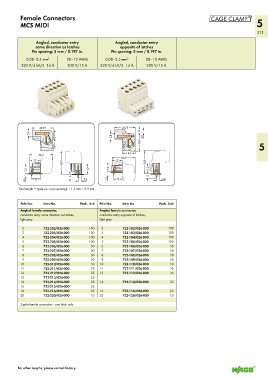

Page 313 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

"

Female Connectors
MCS MIDI 5
311

Angled, conductor entry Angled, conductor entry
same direction as latches opposite of latches
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

0.08–2.5 mm 2 28–12 AWG 0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 14 A 300 V/15 A 320 V/4 kV/2 14 A 300 V/15 A

22,75 22,75
4
5,8 5,8
19,9 2,5
19,9 5
14,3
<________26,3 _______> 14,3
<________26,3 _______>
12 12
26,3 26,3
7,5 12 7,5 12
5 5
3,8 10 3,8 3,8 10 3,8
Total length = (pole no. x pin spacing) + 1.5 mm + 0.9 mm

Pole No. Item No. Pack. Unit Pole No. Item No. Pack. Unit
Angled female connector, Angled female connector,
conductor entry same direction as latches, conductor entry opposite of latches,
light gray light gray

2 722-202/026-000 100 2 722-102/026-000 100
3 722-203/026-000 100 3 722-103/026-000 100
4 722-204/026-000 100 4 722-104/026-000 100
5 722-205/026-000 100 5 722-105/026-000 100
6 722-206/026-000 50 6 722-106/026-000 50
7 722-207/026-000 50 7 722-107/026-000 50
8 722-208/026-000 50 8 722-108/026-000 50
9 722-209/026-000 50 9 722-109/026-000 50
10 722-210/026-000 50 10 722-110/026-000 50
11 722-211/026-000 25 11 722-111/026-000 25
12 722-212/026-000 25 12 722-112/026-000 25
13 722-213/026-000 25
14 722-214/026-000 25 14 722-114/026-000 25
15 722-215/026-000 25
16 722-216/026-000 25 16 722-116/026-000 25
20 722-220/026-000 10 20 722-120/026-000 10

2-pole female connectors - one latch only

For other lengths, please contact factory.
